AK6E-190C
lmages are for reference only.AK6E-190C
TVS DIODE 190VWM 290VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
47,891 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
290V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
AK6E-190C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | AK6E |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 190V |
| Voltage - Breakdown (Min) | 200V |
| Voltage - Clamping (Max) @ Ipp | 290V |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | AK6E |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

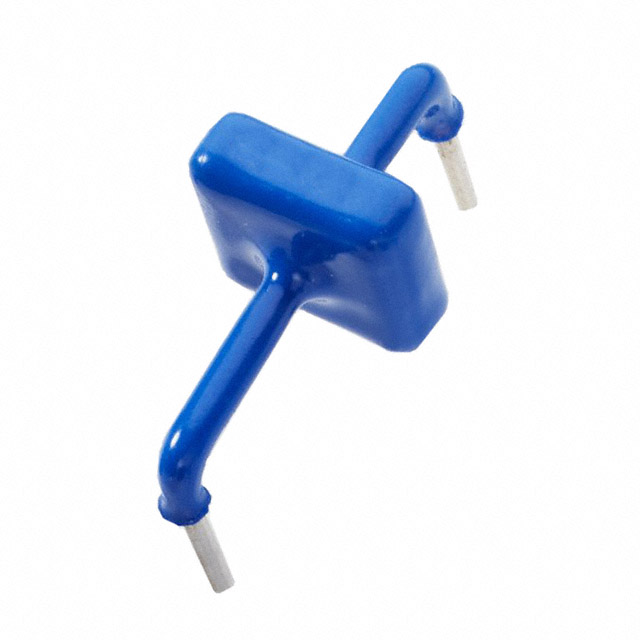

| Part Number | AK6E-100C | AK6E-133C | AK6E-170C | AK6-030C |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Littelfuse Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | TVS DIODE 100VWM 165VC AXIAL | TVS DIODE 133VWM 220VC AXIAL | TVS DIODE 170VWM 260VC AXIAL | TVS DIODE 30VWM 90VC AXIAL |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Littelfuse Inc. |
| Packaging | Bulk | Bulk | Bulk | Tray |
