AL5809-20QP1-7

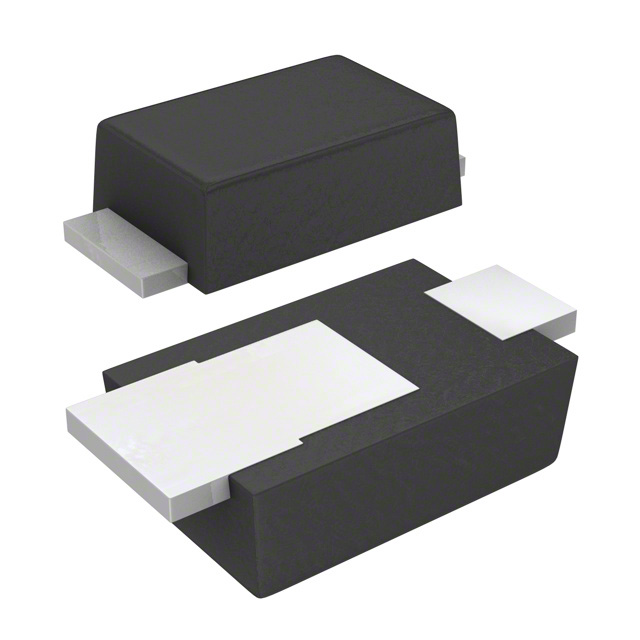

lmages are for reference only.AL5809-20QP1-7
IC LED DRVR LIN PWM 20MA PDI123
DatasheetPOWERDI®123
69,702 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 1 Output Linear Dimming 20mA PowerDI™ 123
AL5809-20QP1-7
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 60V |
| Voltage - Output | 60V |
| Current - Output / Channel | 20mA |
| Frequency | - |
| Dimming | - |
| Applications | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | POWERDI®123 |
| Supplier Device Package | PowerDI™ 123 |
| Base Product Number | AL5809 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AL5809-20P1-7 | AL5809-20S1-7 | AL5809-25P1-7 | AL5809-25QP1-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR LIN PWM 20MA PDI123 | IC LED DRVR LIN PWM 20MA SOD123 | IC LED DRVR LIN PWM 25MA PDI123 | IC LED DRVR LIN PWM 25MA PDI123 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
