AMS22U5A1BHARL306
lmages are for reference only.AMS22U5A1BHARL306

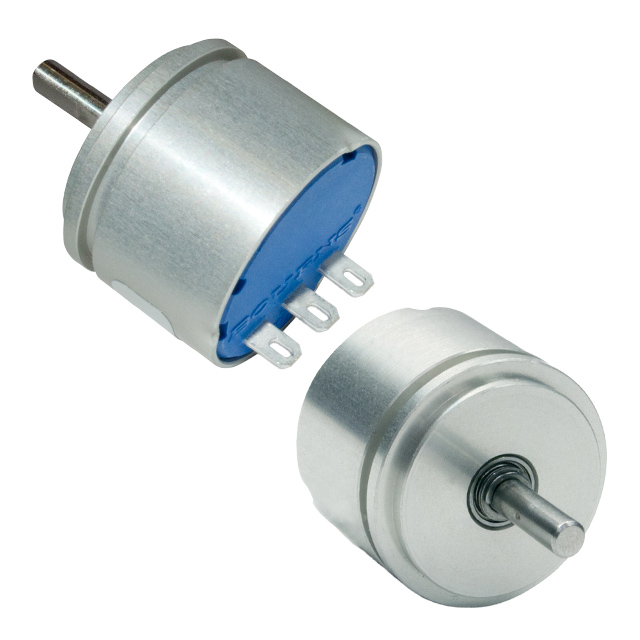

SENSOR ROTARY 60DEG SOLDER LUG
DatasheetModule, Round Shaft
39,372 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Round Shaft Solder Lug
AMS22U5A1BHARL306
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Bourns Inc. |
| Series | AMS22U |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 10° ~ 60°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Round Shaft |
| Linearity | ±0.5% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 5V |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Module, Round Shaft |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | AMS22U |
| Product Attribute |  |
 |
 |
 |
| Part Number | AMS22U5A1BHARL301 | AMS22U5A1BHARL302 | AMS22U5A1BHARL307 | AMS22U5A1BHARL308 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR ROTARY 10DEG SOLDER LUG | SENSOR ROTARY 20DEG SOLDER LUG | SENSOR ROTARY 70DEG SOLDER LUG | SENSOR ROTARY 80DEG SOLDER LUG |
| Series | AMS22U | AMS22U | AMS22U | AMS22U |
| Packaging | Bulk | Bulk | Bulk | Bulk |
