AO6801A
lmages are for reference only.AO6801A
MOSFET 2P-CH 30V 2.3A 6TSOP
DatasheetSC-74, SOT-457
42,768 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 2.3A 1.15W Surface Mount 6-TSOP
AO6801A
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 2.3A |
| Rds On (Max) @ Id, Vgs | 115mOhm @ 2.3A, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 315pF @ 15V |
| Power - Max | 1.15W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
| Base Product Number | AO680 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

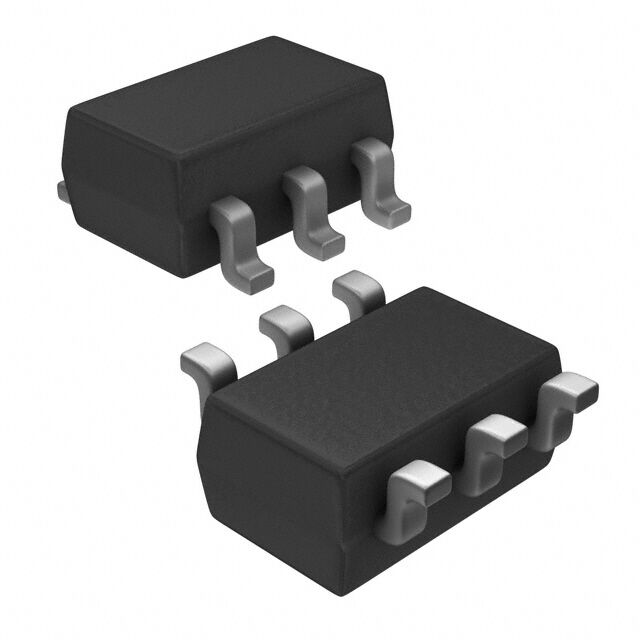

| Part Number | AO6801E | AO6800 | AO6800L | AO6800L_003 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET 2P-CH 30V 2A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
