AO6804A

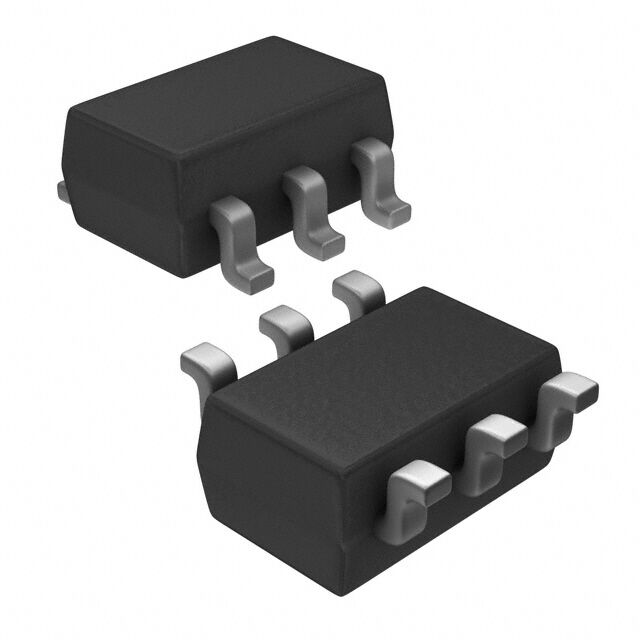

lmages are for reference only.AO6804A
MOSFET 2N-CH 20V 5A 6TSOP
DatasheetSC-74, SOT-457
85,383 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 5A 1.3W Surface Mount 6-TSOP
AO6804A
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Common Drain |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 225pF @ 10V |
| Power - Max | 1.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
| Base Product Number | AO680 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | AO6804 | AO6800 | AO6800L | AO6800L_003 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET 2N-CH 20V 4A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP | MOSFET 2N-CH 30V 3.4A 6TSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
