AOB66216L

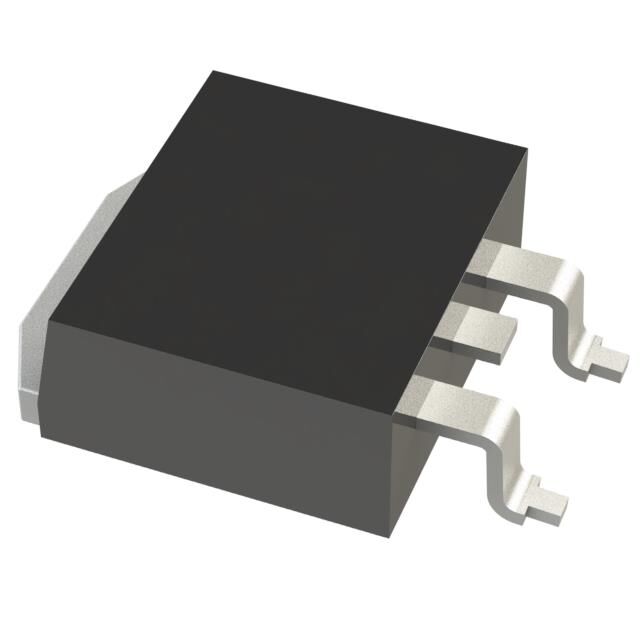

lmages are for reference only.AOB66216L
LINEAR IC
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
37,570 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 120 V 27A (Ta), 120A (Tc) 10W (Ta), 375W (Tc) Surface Mount TO-263 (D2PAK)
AOB66216L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | AlphaSGT™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 16700 pF @ 75 V |
| FET Feature | - |
| Power Dissipation (Max) | 10W (Ta), 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (D2PAK) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 270 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | AOB095A60L | AOB10N60L | AOB1100L | AOB11C60 |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 600V 38A TO263 | MOSFET N-CH 600V 10A TO263 | MOSFET N-CH 100V 8A/130A TO263 | MOSFET N-CH 600V 11A TO263 |
| Series | aMOS5™ | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
