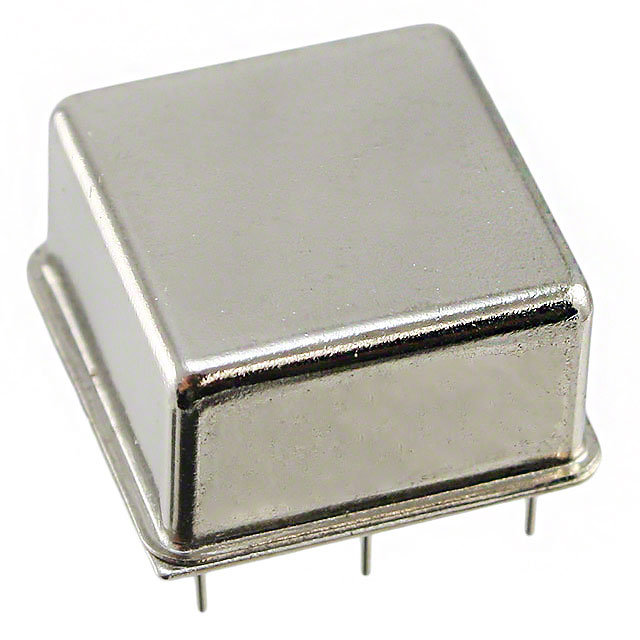

AOCJY2A-100.000MHZ-E
lmages are for reference only.AOCJY2A-100.000MHZ-E
XTAL OSC VCOCXO 100.0000MHZ CMOS
Datasheet6-DIP (0.600", 15.24mm), 5 Leads
56,611 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 MHz VCOCXO CMOS Oscillator 5V Standby (Power Down) 6-DIP (0.600", 15.24mm), 5 Leads
AOCJY2A-100.000MHZ-E
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AOCJY2 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCOCXO |
| Frequency | 100 MHz |
| Function | Standby (Power Down) |
| Output | CMOS |
| Voltage - Supply | 5V |
| Frequency Stability | ±10ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.600", 15.24mm), 5 Leads |
| Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | AOCJY2A-100.000MHZ-E-SW | AOCJY2A-100.000MHZ-F | AOCJY2A-10.000MHZ | AOCJY2A-10.000MHZ |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCOCXO 100.0000MHZ SNWV | XTAL OSC VCOCXO 100.0000MHZ CMOS | XTAL OSC VCOCXO 10.0000MHZ CMOS | XTAL OSC VCOCXO 10.0000MHZ CMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tray | Tray | Tray | Tray |
