AOCJYR-24.576MHZ-M5834LF-T

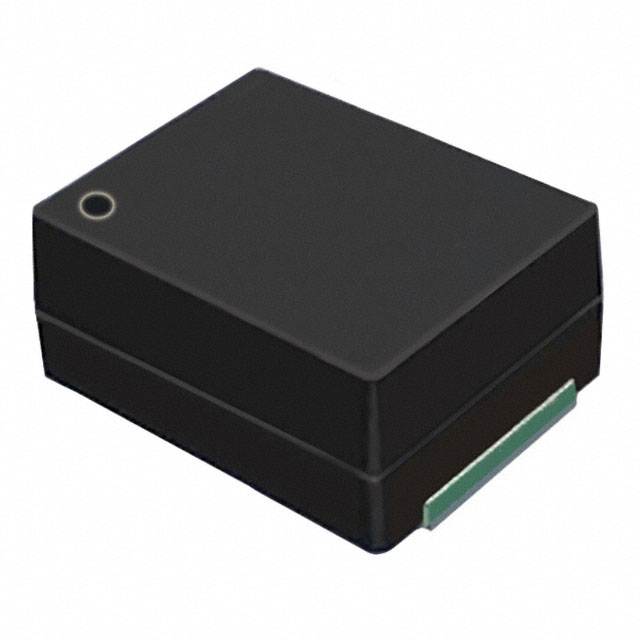

lmages are for reference only.AOCJYR-24.576MHZ-M5834LF-T
XTAL OSC OCXO 24.5760MHZ LVCMOS
Datasheet4-SMD, No Lead
90,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.576 MHz OCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
AOCJYR-24.576MHZ-M5834LF-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AOCJYR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 24.576 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±25ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 122mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.382" L x 0.295" W (9.70mm x 7.50mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | AOCJYR-24.576MHZ-M5834LF | AOCJYR-24.576MHZ-M6069LF | AOCJYR-24.576MHZ-M6069LF-T | AOCJY-10.000MHZ |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC OCXO 24.5760MHZ LVCMOS | XTAL OSC OCXO 24.5760MHZ LVCMOS | XTAL OSC OCXO 24.5760MHZ LVCMOS | XTAL OSC VCOCXO 10.0000MHZ CMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Strip | Tape & Reel (TR) | Tray |
