AOK60N30L
lmages are for reference only.AOK60N30L
MOSFET N-CH 300V 60A TO247
DatasheetTO-247-3
29,690 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 300 V 60A (Tc) 658W (Tc) Through Hole TO-247
AOK60N30L
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4.1V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 5330 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 658W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 |
| Package / Case | TO-247-3 |
| Base Product Number | AOK60 |
| Gate Charge (Qg) (Max) @ Vgs | 106 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

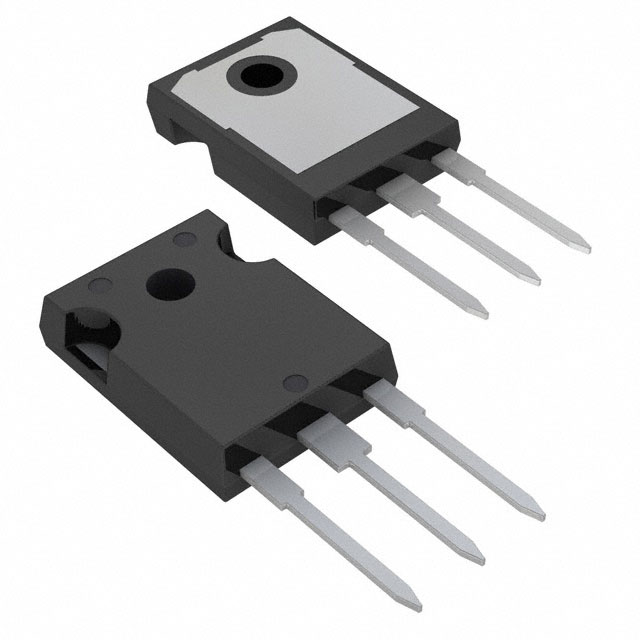

| Part Number | AOK015V65X2 | AOK015V75X2Q | AOK033V120X2 | AOK033V120X2Q |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 650V SILICON CARBIDE MOSFET | 750V SILICON CARBIDE MOSFET | 1200V SILICON CARBIDE MOSFET | 1200V SILICON CARBIDE MOSFET |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
