AON6970

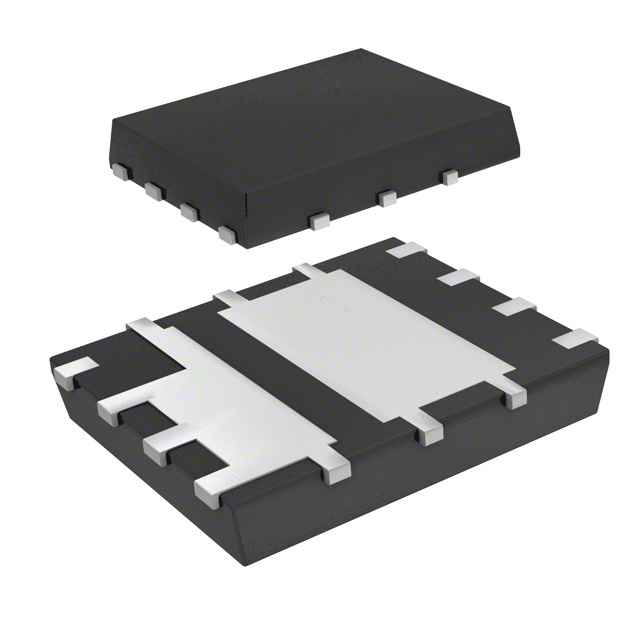

lmages are for reference only.AON6970
MOSFET 2N-CH 30V 24A/42A 8DFN
Datasheet8-PowerWDFN
14,912 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 24A, 42A 5W, 4.1W Surface Mount 8-DFN (5x6)
AON6970
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | SRFET™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 24A, 42A |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1171pF @ 15V |
| Power - Max | 5W, 4.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-DFN (5x6) |
| Base Product Number | AON697 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | AON6971 | AON6973A | AON6974 | AON6974A |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ||||
| Description | MOSFET 2N-CH 30V 23A/40A 8DFN | MOSFET 2N-CH 30V 22A/30A 8DFN | MOSFET 2N-CH 30V 22A/30A 8DFN | MOSFET 2N-CH 30V 22A/30A 8DFN |
| Series | SRFET™ | SRFET™ | - | SRFET™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
