APT1222WAY
lmages are for reference only.APT1222WAY
OPTOISOLATOR 5KV TRIAC 6DIP
Datasheet6-SMD (5 Leads), Gull Wing
50,249 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP Gull Wing
APT1222WAY
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Panasonic Electric Works |
| Series | APT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 500V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.21V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | 6-DIP Gull Wing |
| Approval Agency | cUR, VDE |
| Base Product Number | APT1222 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute |  |
 |
 |
 |

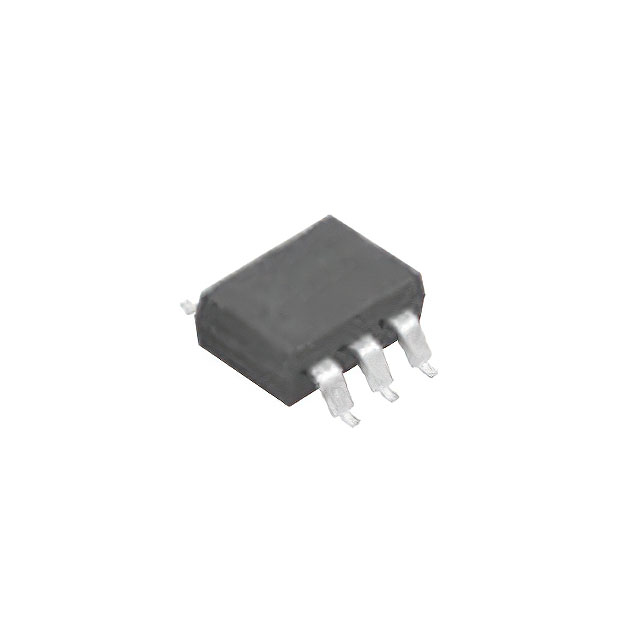

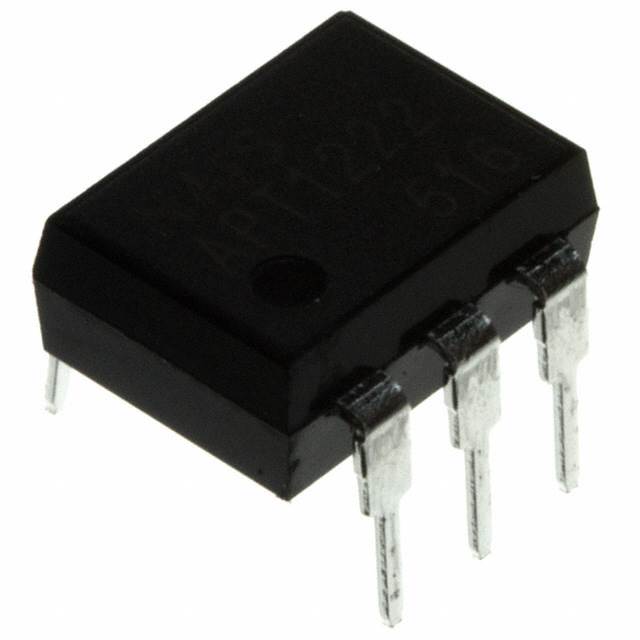

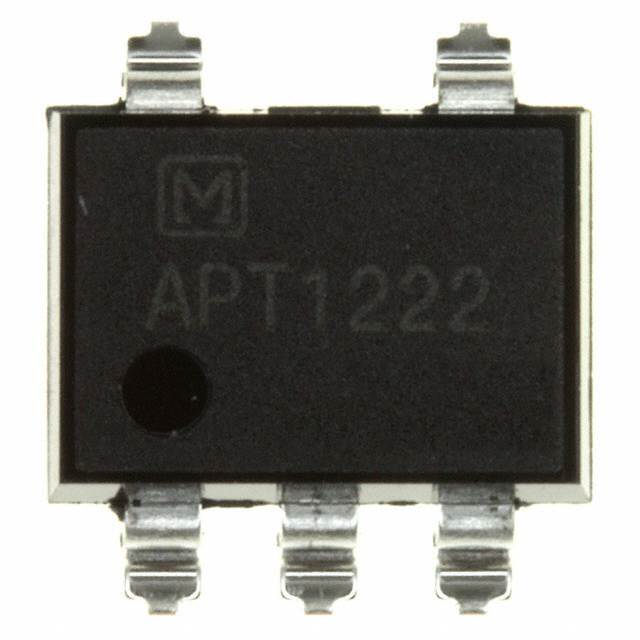

| Part Number | APT1222WA | APT1222WAW | APT1222 | APT1222A |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP | OPTOISOLATOR 5KV TRIAC 6DIP | OPTOISOLATOR 5KV TRIAC 6DIP | OPTOISOLATOR 5KV TRIAC 6SMD |
| Series | APT | APT | APT | APT |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tube |
