Product CatalogPart Number
AQV212SJ
Manufacturer
PanasonicDescription
AQV212SJ
Datasheet
DatasheetPackage
6-SOP (0.173", 4.40mm)
In Stock
87,166 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AQV212SJ
AQV212SJ
lmages are for reference only.Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 6-SOP (0.173", 4.40mm)
Quick Inquiry
AQV212SJ
Specifications
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Panasonic |
| Series | * |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.14VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 500 mA |
| Termination Style | Gull Wing |
| Operating Temperature | - |
| Package / Case | 6-SOP (0.173", 4.40mm) |
| Supplier Device Package | 6-SOP |
| Approval Agency | - |
| Grade | - |
| Qualification | - |
| Base Product Number | AQV212 |
| On-State Resistance (Max) | 2.5 Ohms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

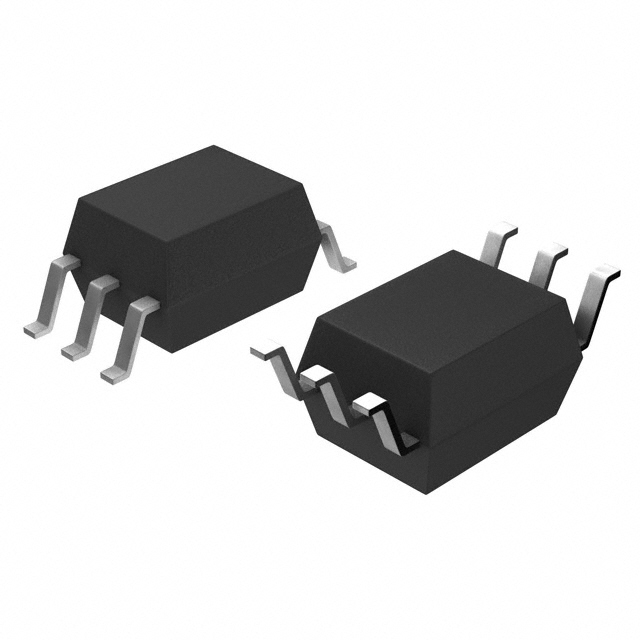

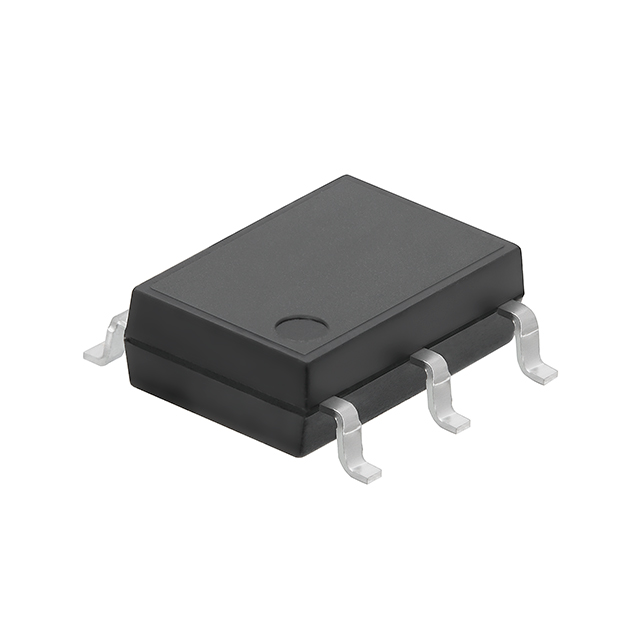

| Part Number | AQV212S | AQV212SX | AQV212SZ | AQV210 |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SSR RELAY SPST-NO 500MA 0-60V | SSR RELAY SPST-NO 500MA 0-60V | SSR RELAY SPST-NO 500MA 0-60V | SSR RELAY SPST-NO 130MA 0-350V |
| Series | PhotoMOS™ AQV | PhotoMOS™ AQV | PhotoMOS™ AQV | PhotoMOS™ AQV |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
Customers Also Interested in
Recommended Products
AQV210
Panasonic Electric Works

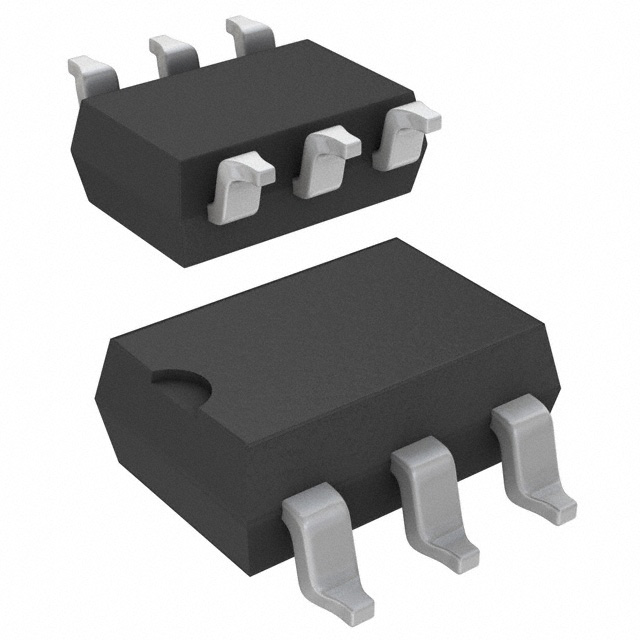

AQV210A
