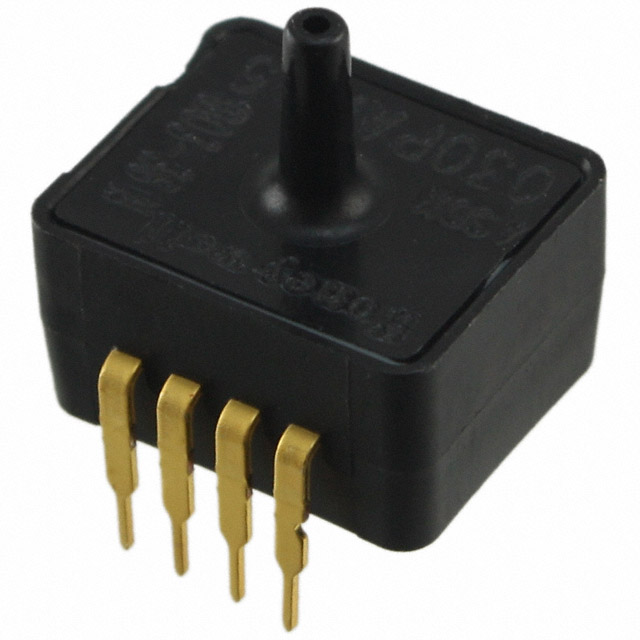

ASDXAVX030PGAA5
lmages are for reference only.ASDXAVX030PGAA5
SENSOR 30PSIG 0.09" 4.5V
Datasheet8-DIP Module
57,951 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.09" (2.31mm) Tube 0.5 V ~ 4.5 V 8-DIP Module
ASDXAVX030PGAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | ASDX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | ASDXAVX030 |
| Applications | Board Mount |
| Pressure Type | Vented Gauge |
| Operating Pressure | 30PSI (206.84kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±2% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.09" (2.31mm) Tube |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -20°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

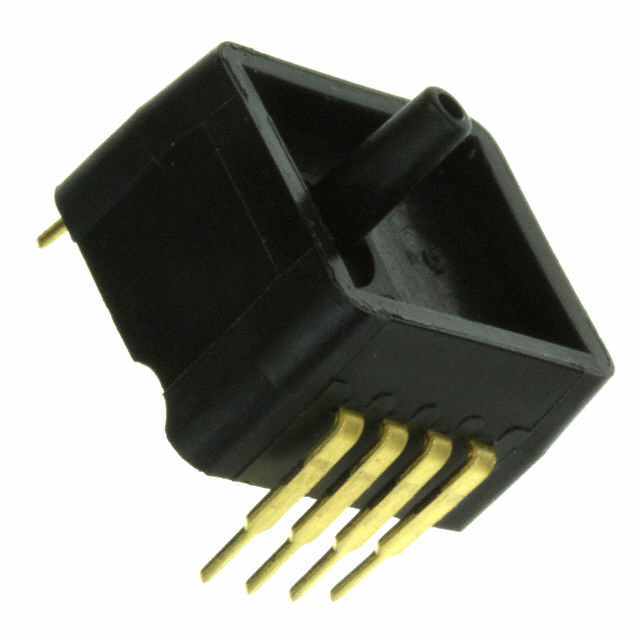

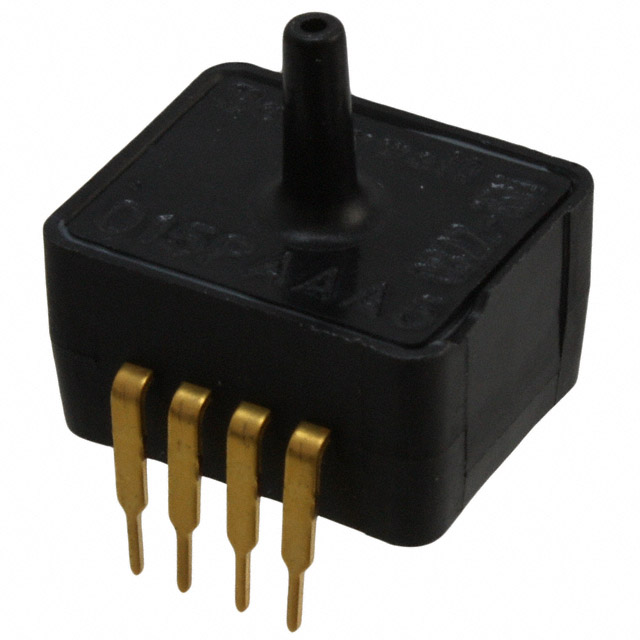

| Part Number | ASDXAVX030PG7A5 | ASDXACX015PA7A5 | ASDXACX015PAAA5 | ASDXACX015PAAB3 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS non-compliant |
| Description | SENSOR 30PSIG 0.09" 12BIT | SENSOR 15PSIA 0.09" 12BIT | SENSOR 15PSIA 0.09" 4.5V | PRESSURE TRANSDUCER |
| Series | ASDX | ASDX | ASDX | ASDX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
