Product CatalogPart Number
ASGTX-D-1.000GHZ-1
Manufacturer
Abracon LLCDescription
XTAL OSC VCTCXO 1.0000GHZ LVDS
Datasheet
DatasheetPackage
6-SMD, No Lead
In Stock
95,027 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASGTX-D-1.000GHZ-1
ASGTX-D-1.000GHZ-1

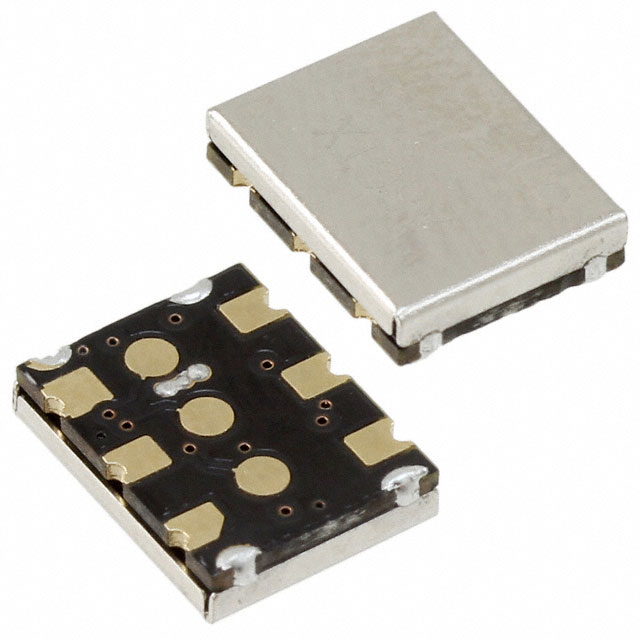

lmages are for reference only.Payment Methods
Delivery Services
1 GHz VCTCXO LVDS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead
Quick Inquiry
ASGTX-D-1.000GHZ-1
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASGTX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 1 GHz |
| Function | - |
| Output | LVDS |
| Voltage - Supply | 3.135V ~ 3.465V |
| Frequency Stability | ±1ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -30°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 40mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.354" L x 0.276" W (9.00mm x 7.00mm) |
| Height - Seated (Max) | 0.088" (2.24mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ASGTX-D-1.000GHZ-1-T | ASGTX-D-1.000GHZ-2 | ASGTX-D-1.000GHZ-2-T | ASGTX-D-1.148GHZ-1 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 1.0000GHZ LVDS | XTAL OSC VCTCXO 1.0000GHZ LVDS | XTAL OSC VCTCXO 1.0000GHZ LVDS | TCXO 9070 6-SMD 1.148MHZ 1PPM -3 |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
