Product CatalogPart Number
ASM201-120-BEH-PF1
Manufacturer
Astrodyne TDIDescription
200W Medical Grade Enclosed Powe
Datasheet
DatasheetPackage
-
In Stock
56,758 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASM201-120-BEH-PF1
ASM201-120-BEH-PF1
lmages are for reference only.Payment Methods
Delivery Services
Enclosed AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
Quick Inquiry
ASM201-120-BEH-PF1
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | ASM201 (200W) |
| Packaging | Tape & Box (TB) |
| RoHS Status | |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 16.7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.17" L x 2.68" W x 1.61" H (105.9mm x 68.1mm x 40.9mm) |
| Approval Agency | CB, CSA, cTUVus, TUV |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 140W (200W Forced Air) |
| Features | Standby Output, Universal Input |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ASM201-120-BNH-PF1 | ASM201-150-BEH-PF1 | ASM201-150-BNH-PF1 | ASM201-1700-BNH-PF1 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 200W Medical Grade Open Frame Po | AC/DC CONVERTER 15V 141W | AC/DC CONVERTER 15V 141W | 100W Open Frame Power Supply, 17 |
| Series | ASM201 (200W) | ASM201 (200W) | ASM201 (200W) | * |
| Packaging | Tape & Box (TB) | Box | Box | Bulk |
Customers Also Interested in
Recommended Products
ASM201-120-BNH-PF1
Astrodyne TDI
ASM201-150-BEH-PF1
Astrodyne TDI

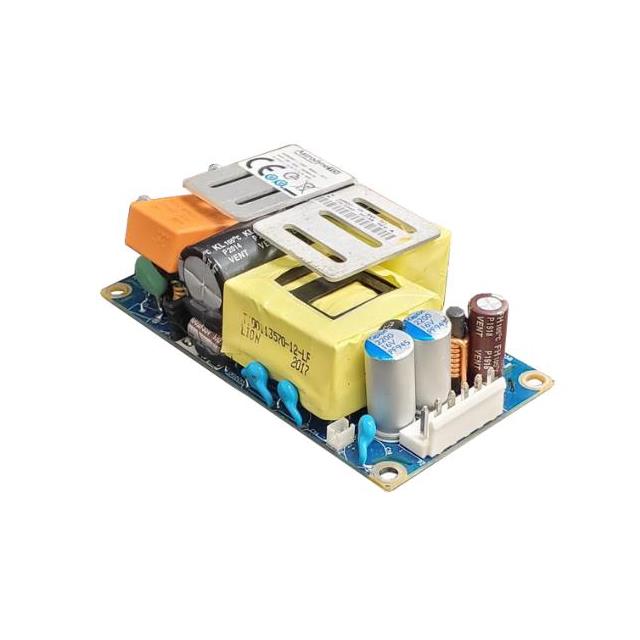

ASM201-150-BNH-PF1
Astrodyne TDI
ASM201-1700-BNH-PF1
Astrodyne TDI
ASM201-180-BEH-PF1
Astrodyne TDI
ASM201-180-BNH-PF1
Astrodyne TDI
ASM201-190-BNH-PF1
Astrodyne TDI
ASM201-240-BEH-PF1
Astrodyne TDI
ASM201-240-BEH-PFC
Astrodyne TDI

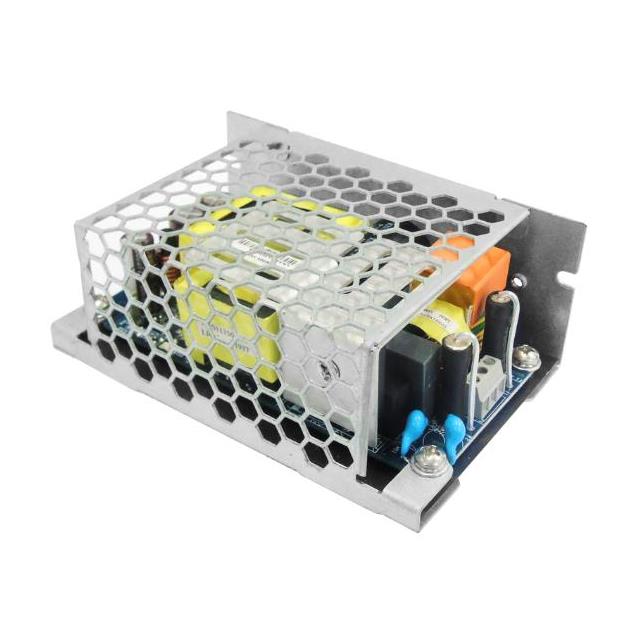

ASM201-240-BET-PF1
Astrodyne TDI
ASM201-240-BNH-PFC
Astrodyne TDI
ASM201-280-BEH-PF1
Astrodyne TDI
ASM201-280-BNH-PF1
Astrodyne TDI
ASM201-300-BNH-PF1
Astrodyne TDI

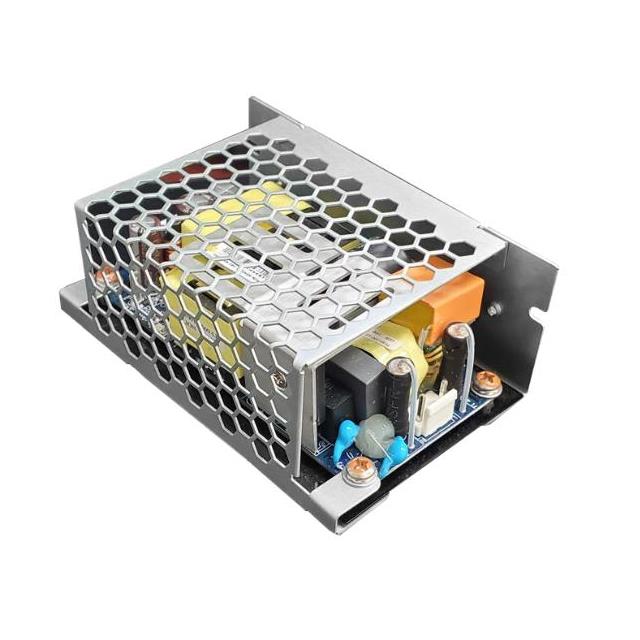

ASM201-360-BEH-PF1
