Product CatalogPart Number
ASM201-300-BNH-PF1
Manufacturer
Astrodyne TDIDescription
AC/DC CONVERTER 30V 141W
Datasheet
DatasheetPackage
-
In Stock
35,430 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASM201-300-BNH-PF1
ASM201-300-BNH-PF1
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 30V 80 ~ 240 VAC Input
Quick Inquiry
ASM201-300-BNH-PF1
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | ASM201 (200W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 240 VAC |
| Voltage - Output 1 | 30V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
| Approval Agency | CB, CSA, cTUVus, TUV |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 141W (201W Forced Air) |
| Features | Standby Output, Universal Input |
| Standard Number | 60601-1; 60950-1; 62368-1 |
| Base Product Number | ASM201 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ASM201-360-BEH-PF1 | ASM201-360-BNH-PF1 | ASM-0102 | ASM-1501 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | AC/DC CONVERTER 36V 137W | AC/DC CONVERTER 36V 137W | AC/DC CONVERTER 12V 10W | AC/DC CONVERTER 5V 15W |
| Series | ASM201 (200W) | ASM201 (200W) | ASM10 (10W) | ASM15 (15W) |
| Packaging | Box | Box | Bulk | Bulk |
Customers Also Interested in
Recommended Products

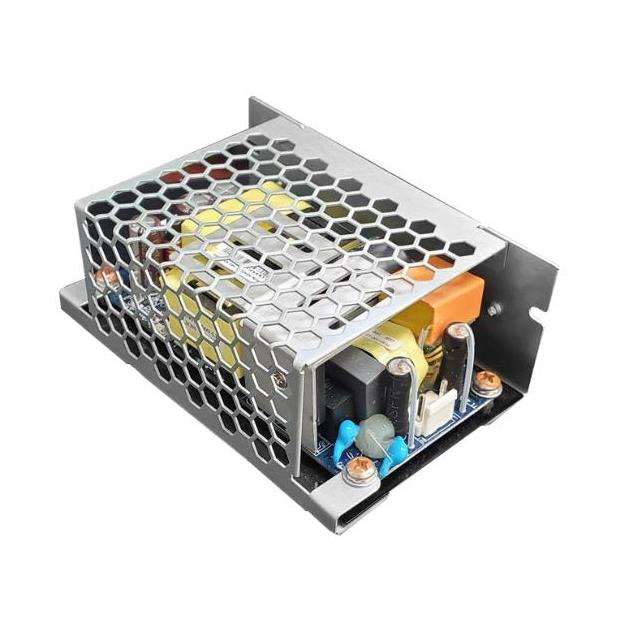

ASM201-120-BEH-PF1
Astrodyne TDI
ASM201-120-BNH-PF1
Astrodyne TDI
ASM201-150-BEH-PF1
Astrodyne TDI

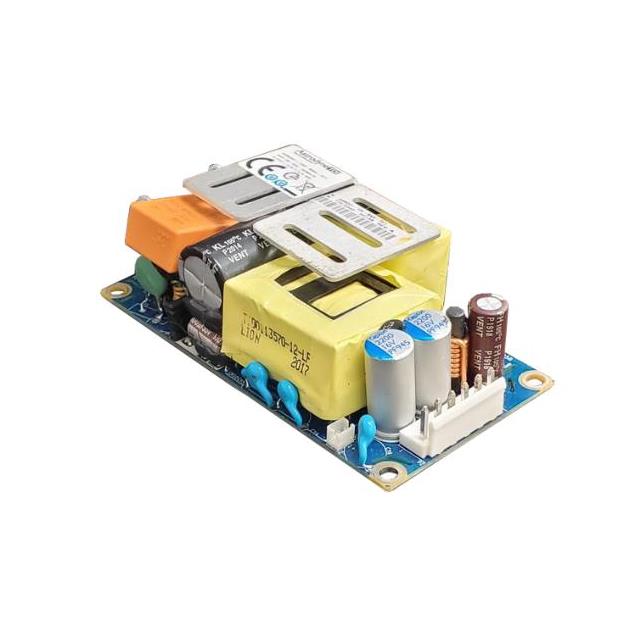

ASM201-150-BNH-PF1
Astrodyne TDI
ASM201-1700-BNH-PF1
Astrodyne TDI
ASM201-180-BEH-PF1
Astrodyne TDI
ASM201-180-BNH-PF1
Astrodyne TDI
ASM201-190-BNH-PF1
Astrodyne TDI
ASM201-240-BEH-PF1
Astrodyne TDI
ASM201-240-BEH-PFC
Astrodyne TDI
ASM201-240-BET-PF1
Astrodyne TDI

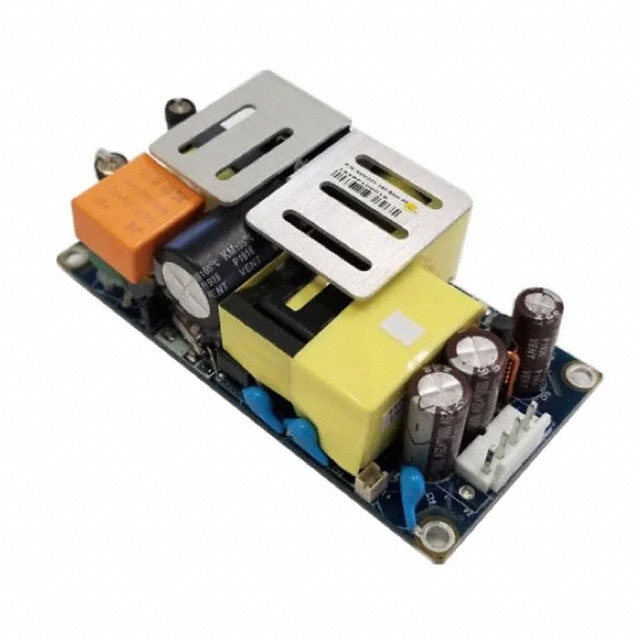

ASM201-240-BNH-PFC
