Product CatalogPart Number
ASM550-540-BET-S00
Manufacturer
Astrodyne TDIDescription
AC/DC CONVERTER 54V 567W
Datasheet
DatasheetPackage
-
In Stock
54,874 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASM550-540-BET-S00
ASM550-540-BET-S00
lmages are for reference only.Payment Methods
Delivery Services
Enclosed AC DC Converters 1 Output 54V 80 ~ 275 VAC, 110 ~ 380 VDC Input
Quick Inquiry
ASM550-540-BET-S00
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | ASM550 (550W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 275 VAC, 110 ~ 380 VDC |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.00" L x 4.36" W x 1.58" H (177.8mm x 110.7mm x 40.1mm) |
| Approval Agency | CB, cTUVus, TUV |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 567W |
| Features | Standby Output, Universal Input |
| Standard Number | 60601-1 |
| Base Product Number | ASM550 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

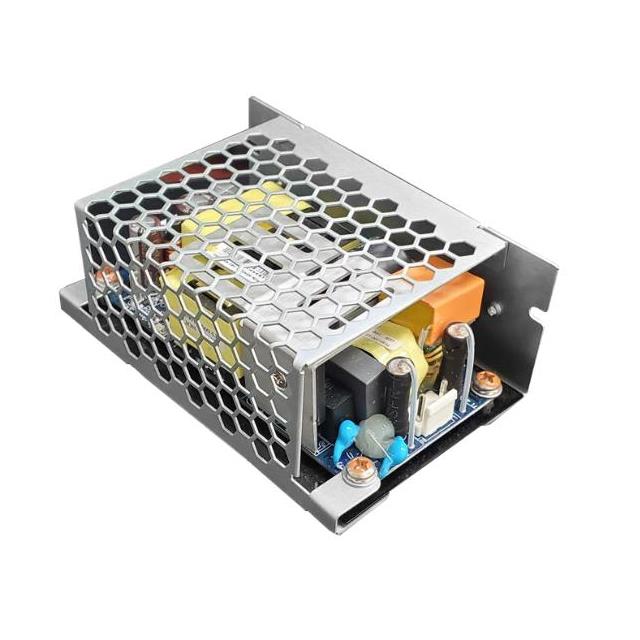

| Part Number | ASM-0102 | ASM-1501 | ASM-1502 | ASM201-120-BEH-PF1 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | AC/DC CONVERTER 12V 10W | AC/DC CONVERTER 5V 15W | AC/DC CONVERTER 12V 15W | 200W Medical Grade Enclosed Powe |
| Series | ASM10 (10W) | ASM15 (15W) | ASM15 (15W) | ASM201 (200W) |
| Packaging | Bulk | Bulk | Bulk | Tape & Box (TB) |
