Product CatalogPart Number
ASMBJ180A-HF
Manufacturer
Comchip TechnologyDescription
DIODE TVS 180V 600W SMB UNI-DIR
Datasheet
DatasheetPackage
DO-214AA, SMB
In Stock
87,035 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ASMBJ180A-HF
ASMBJ180A-HF

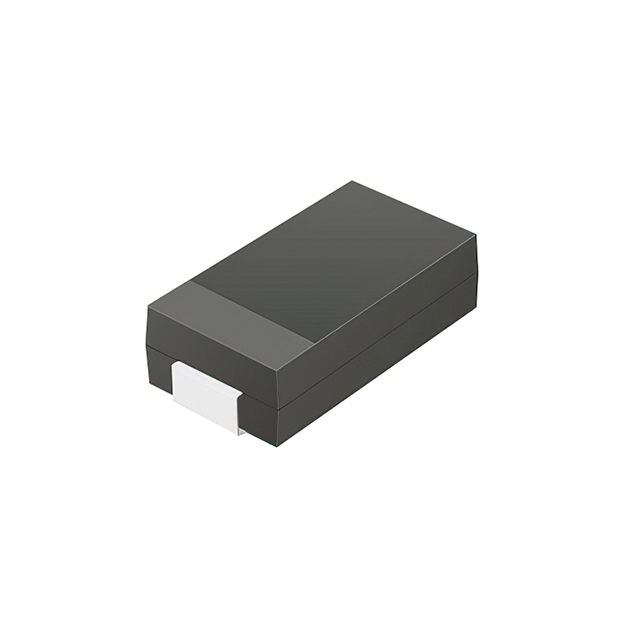

lmages are for reference only.Payment Methods
Delivery Services
291.6V Clamp 2.1A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Quick Inquiry
ASMBJ180A-HF
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 180V |
| Voltage - Breakdown (Min) | 200V |
| Voltage - Clamping (Max) @ Ipp | 291.6V |
| Current - Peak Pulse (10/1000µs) | 2.1A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | ASMBJ180 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | ASMBJ100A-HF | ASMBJ100CA-HF | ASMBJ10A-HF | ASMBJ10CA-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE TVS 100V 600W SMB UNI-DIR | DIODE TVS 100V 600W SMB BI-DIR A | DIODE TVS 10V 600W SMB UNI-DIR A | DIODE TVS 10V 600W SMB BI-DIR AU |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
