ASMBJ40CA-HF
lmages are for reference only.ASMBJ40CA-HF
DIODE TVS 40V 600W SMB BI-DIR AU
DatasheetDO-214AA, SMB
97,550 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
64.5V Clamp 9.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
ASMBJ40CA-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 40V |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Current - Peak Pulse (10/1000µs) | 9.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | ASMBJ40 |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | ASMBJ40A-HF | ASMBJ43A-HF | ASMBJ43CA-HF | ASMBJ45A-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

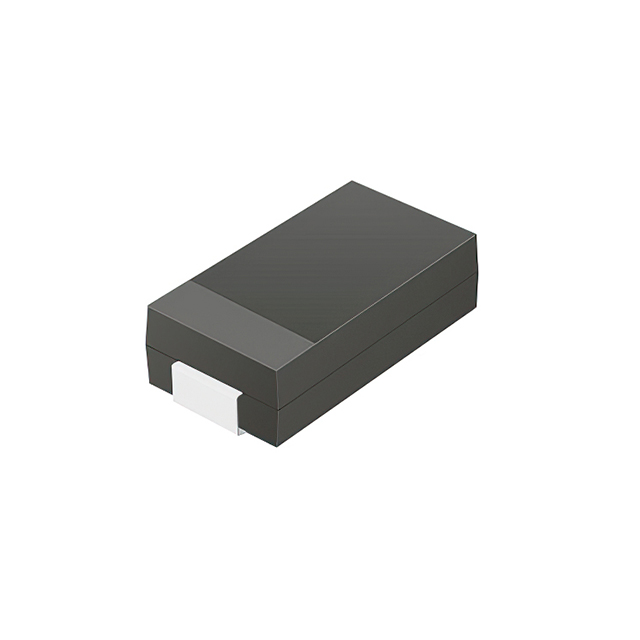

| Description | DIODE TVS 40V 600W SMB UNI-DIR A | DIODE TVS 43V 600W SMB UNI-DIR A | DIODE TVS 43V 600W SMB BI-DIR AU | DIODE TVS 45V 600W SMB UNI-DIR A |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
