AST3TQ-V-10.000MHZ-28-T2
lmages are for reference only.AST3TQ-V-10.000MHZ-28-T2
XTAL OSC VCTCXO 10.0000MHZ LVCMO
Datasheet4-SMD, No Lead
54,415 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz VCTCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
AST3TQ-V-10.000MHZ-28-T2
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AST3TQ-28 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | VCTCXO |
| Frequency | 10 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±280ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 7mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

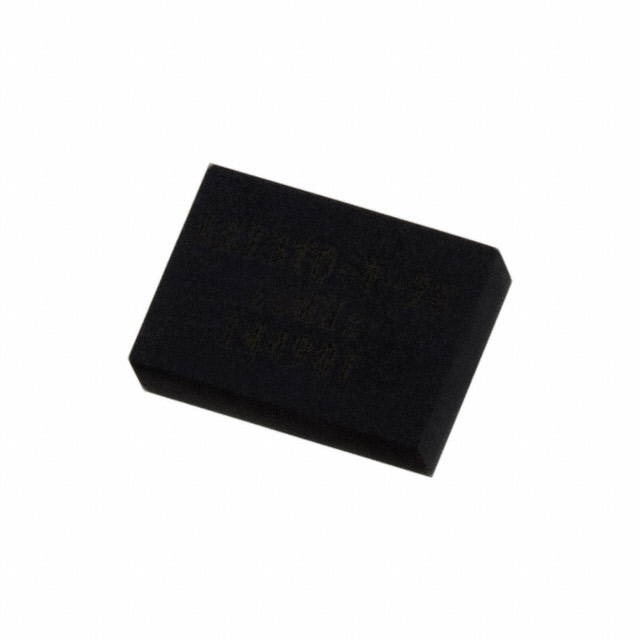

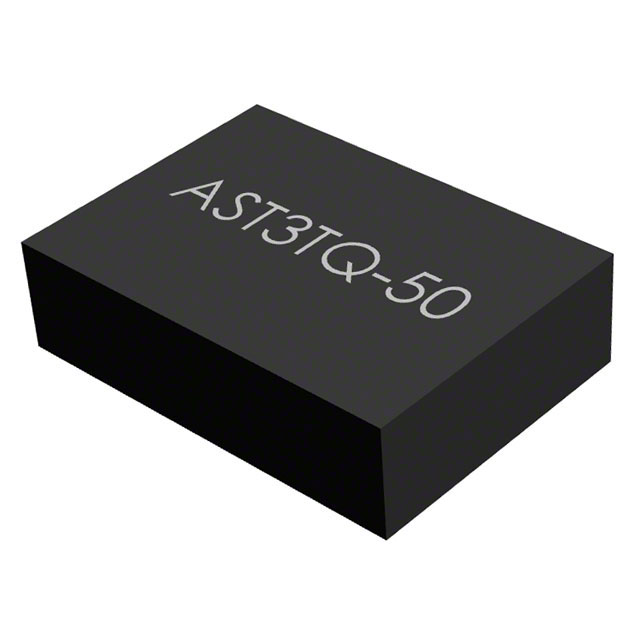

| Part Number | AST3TQ-V-10.000MHZ-28 | AST3TQ-V-10.000MHZ-28-T5 | AST3TQ-V-10.000MHZ-50-C | AST3TQ-V-10.000MHZ-50-C-T5 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC VCTCXO 10.0000MHZ LVCMO | XTAL OSC VCTCXO 10.0000MHZ LVCMO | XTAL OSC VCTCXO 10.0000MHZ LVCMO | XTAL OSC VCTCXO 10.0000MHZ LVCMO |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Strip | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
