ATFC-0201HQ-0N2B-T

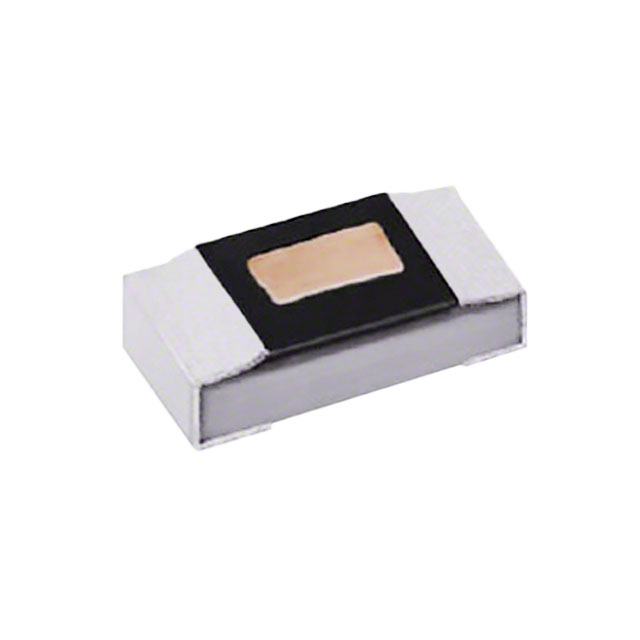

lmages are for reference only.ATFC-0201HQ-0N2B-T
FIXED IND 0.2NH 800MA 50MOHM SMD
Datasheet0201 (0603 Metric)
98,475 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.2 nH Unshielded Thin Film Inductor 800 mA 50mOhm Max 0201 (0603 Metric)
ATFC-0201HQ-0N2B-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATFC-0201HQ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 0.2 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ATFC-0201HQ-0N1B-T | ATFC-0201HQ-0N3B-T | ATFC-0201HQ-0N4B-T | ATFC-0201HQ-0N5B-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 0.1NH 850MA 50MOHM SMD | FIXED IND 0.3NH 800MA 50MOHM SMD | FIXED IND 0.4NH 750MA 50MOHM SMD | FIXED IND 0.5NH 750MA 100MOHM SM |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
