ATFC-0402-1N9B-T

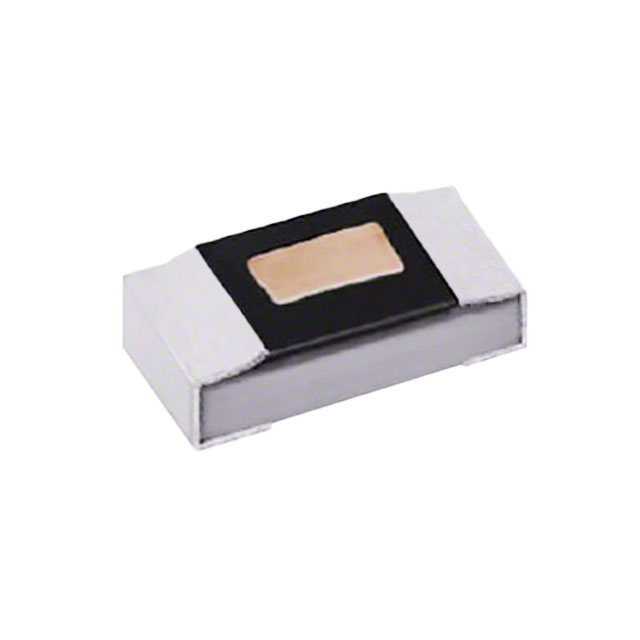

lmages are for reference only.ATFC-0402-1N9B-T
FIXED IND 1.9NH 560MA 350MOHM SM
Datasheet0402 (1005 Metric)
10,610 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.9 nH Unshielded Thin Film Inductor 560 mA 350mOhm Max 0402 (1005 Metric)
ATFC-0402-1N9B-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATFC-0402 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 1.9 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 560 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 350mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 8GHz |
| Ratings | - |
| Operating Temperature | -45°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.015" (0.37mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ATFC-0402-0N2B-T | ATFC-0402-0N4B-T | ATFC-0402-0N8B-T | ATFC-0402-10NG-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 0.2NH 800MA 100MOHM SM | FIXED IND 0.4NH 800MA 100MOHM SM | FIXED IND 0.8NH 700MA 150MOHM SM | FIXED IND 10NH 200MA 1.35OHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
