ATMV24V50V160MA1
lmages are for reference only.ATMV24V50V160MA1
8W Isolated DC-DC Power Module
Datasheet5-DIP Module
76,606 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 50V 160mA 18V - 36V Input
ATMV24V50V160MA1
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Technologies |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 50V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 160mA |
| Power (Watts) | 8 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
 |
 |

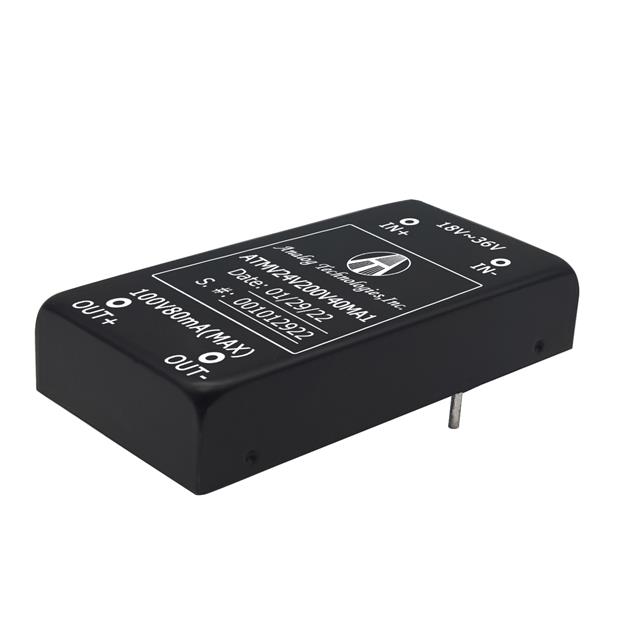

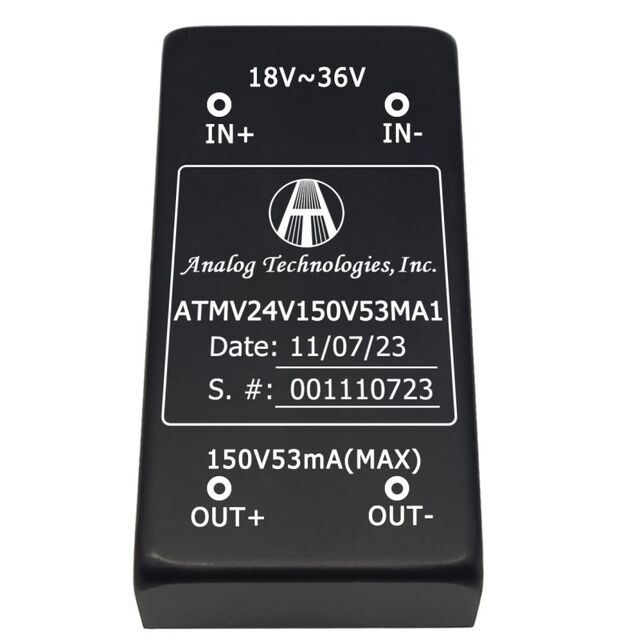

| Part Number | ATMV24V100V80MA1 | ATMV24V100V80MA1 | ATMV24V150V53MA1 | ATMV24V200V40MA1 |
| Manufacturer | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. | Analog Technologies |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | Isolated Module DC DC Converter | Mini Isolated 8W DC-DC Converter | 8W Isolated DC-DC Power Module | Mini Isolated 8W DC-DC Converter |
| Series | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. | Analog Technologies |
| Packaging | Tape & Box (TB) | Bulk | Tape & Box (TB) | Bulk |
