ATMV24VPN200V10MA2
lmages are for reference only.ATMV24VPN200V10MA2
Mini Isolated 2W DC-DC Converter
Datasheet5-DIP Module
29,845 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 200V -200V 10mA, 10mA 18V - 36V Input
ATMV24VPN200V10MA2
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Analog Technologies |
| Series | - |
| Packaging | Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 200V |
| Voltage - Output 2 | -200V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10mA, 10mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
 |
|

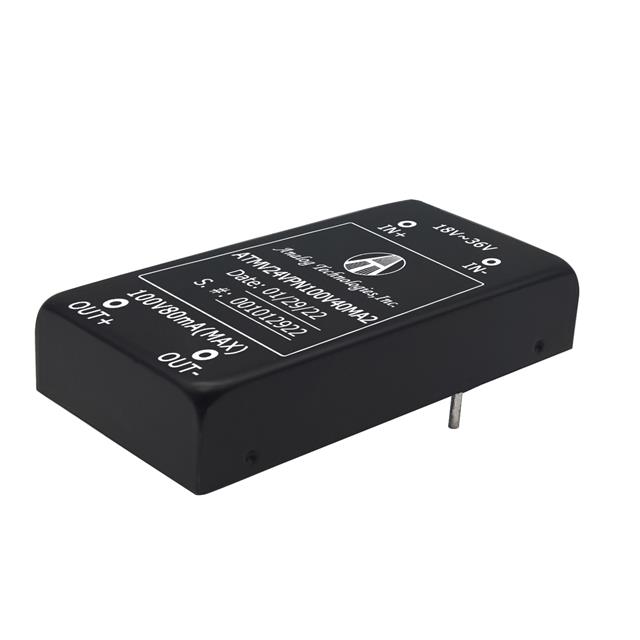

| Part Number | ATMV24VPN200V10MA2 | ATMV24VPN100V40MA2 | ATMV24VPN110V36MA2 | ATMV24VPN110V36MA2 |
| Manufacturer | Analog Technologies, Inc. | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | Mini Isolated 2W DC-DC Converter | Mini Isolated 4W DC-DC Converter | 8W Isolated DC-DC Power Module | 8W Isolated DC-DC Power Module |
| Series | Analog Technologies, Inc. | Analog Technologies | Analog Technologies, Inc. | Analog Technologies, Inc. |
| Packaging | Tray | Bulk | Tape & Box (TB) | Tape & Box (TB) |
