AUIRF7640S2TR
lmages are for reference only.AUIRF7640S2TR
MOSFET N-CH 60V 5.8A DIRECTFET
DatasheetDirectFET™ Isometric SB
75,092 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 5.8A (Ta), 21A (Tc) 2.4W (Ta), 30W (Tc) Surface Mount DIRECTFET SB
AUIRF7640S2TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Ta), 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 25µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.4W (Ta), 30W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET SB |
| Package / Case | DirectFET™ Isometric SB |
| Base Product Number | AUIRF7640 |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

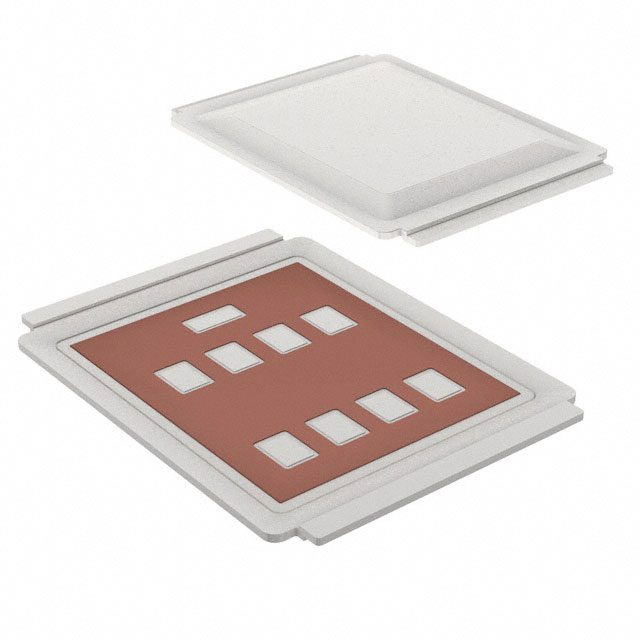

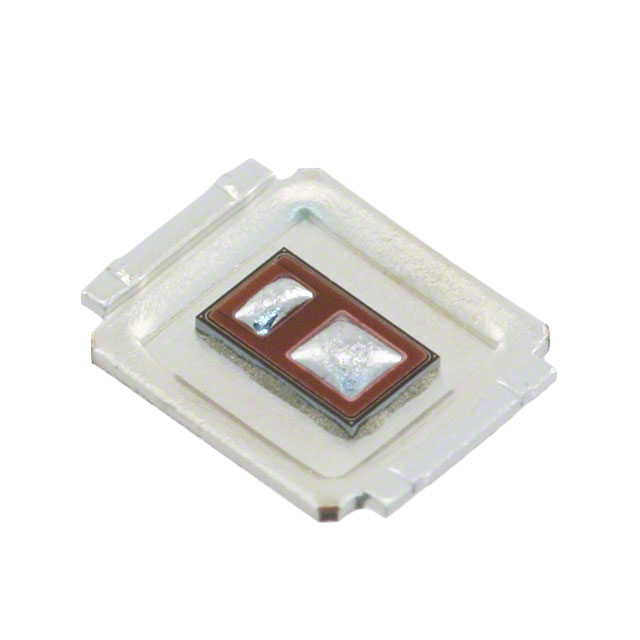

| Part Number | AUIRF7647S2TR | AUIRF7648M2TR | AUIRF7665S2TR | AUIRF7669L2TR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 100V 5.9A DIRECTFET | MOSFET N-CH 60V 14A DIRECTFET | MOSFET N-CH 100V 4.1A DIRECTFET | MOSFET N-CH 100V 19A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
