AUIRF7732S2TR

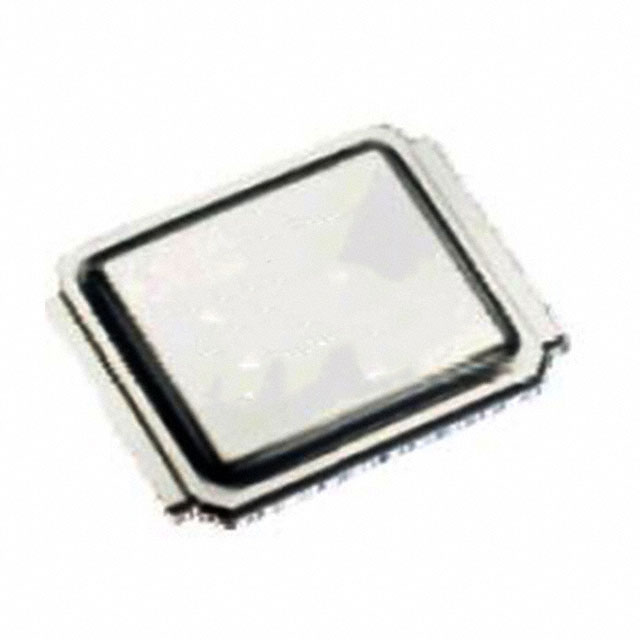

lmages are for reference only.AUIRF7732S2TR
MOSFET N-CH 40V 14A DIRECTFET SC
DatasheetDirectFET™ Isometric SC
99,624 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 14A (Ta) 2.5W (Ta), 41W (Tc) Surface Mount DIRECTFET™ SC
AUIRF7732S2TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6.95mOhm @ 33A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 50µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 41W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ SC |
| Package / Case | DirectFET™ Isometric SC |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | AUIRF7732S2TR | AUIRF7734M2TR | AUIRF7734M2TR | AUIRF7736M2TR |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 40V 14A DIRECTFET SC | MOSFET N-CH 40V 17A DIRECTFET M2 | MOSFET N-CH 40V 17A DIRECTFET M2 | MOSFET N-CH 40V 22A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
