AUIRFR120Z

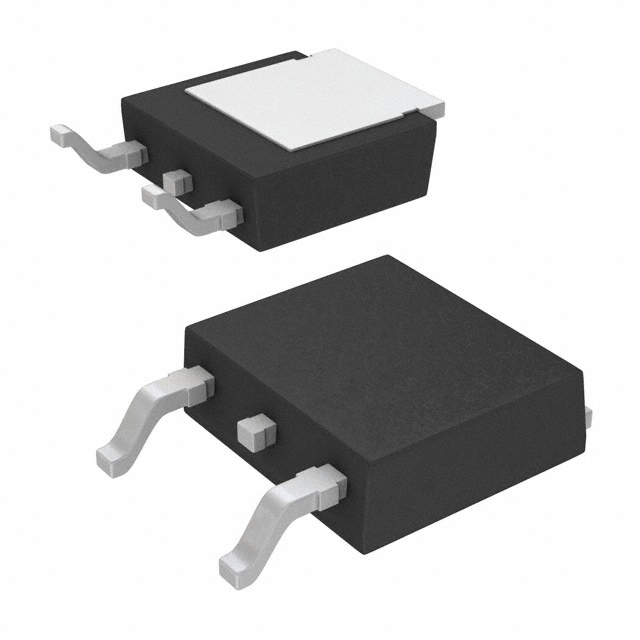

lmages are for reference only.AUIRFR120Z
PFET, 8.7A I(D), 100V, 0.19OHM,
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
74,343 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 8.7A (Tc) 35W (Tc) Surface Mount DPAK
AUIRFR120Z
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 8.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 5.2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 25µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 310 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AUIRFR1018E | AUIRFR120Z | AUIRFR120ZTRL | AUIRF1010EZ |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | International Rectifier |
| RoHS Status | ROHS3 Compliant | Not applicable | ||
| Description | MOSFET N-CH 60V 56A DPAK | MOSFET N-CH 100V 8.7A DPAK | MOSFET N-CH 100V 8.7A DPAK | AUTOMOTIVE HEXFET N CHANNEL |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tube | Tube | Tape & Reel (TR) | Bulk |
