Product CatalogPart Number
AUIRGDC0250AKMA1
Manufacturer
Infineon TechnologiesDescription
IGBT 1200V 141A 543W SUPER220
Datasheet
DatasheetPackage
TO-273AA
In Stock
96,727 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AUIRGDC0250AKMA1
AUIRGDC0250AKMA1
lmages are for reference only.Payment Methods
Delivery Services
IGBT 1200 V 141 A 543 W Through Hole SUPER-220™ (TO-273AA)
Quick Inquiry
AUIRGDC0250AKMA1
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 141 A |
| Current - Collector Pulsed (Icm) | 99 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 33A |
| Power - Max | 543 W |
| Switching Energy | 15mJ (off) |
| Input Type | Standard |
| Gate Charge | 151 nC |
| Td (on/off) @ 25°C | -/485ns |
| Test Condition | 600V, 33A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-273AA |
| Supplier Device Package | SUPER-220™ (TO-273AA) |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

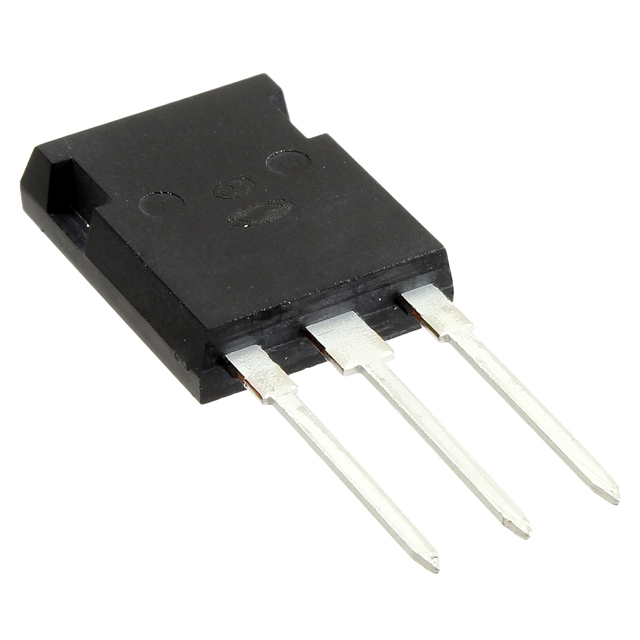

| Part Number | AUIRGDC0250 | APT30GT60BRG | AIKW40N65DF5XKSA1 | APT15GN120BDQ1G |
| Manufacturer | Infineon Technologies | Microchip Technology | Infineon Technologies | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT 1200V 141A 543W TO-220 | IGBT NPT 600V 64A TO247 | IC DISCRETE 650V TO247-3 | IGBT TRENCH FS 1200V 45A TO247 |
| Series | - | Thunderbolt IGBT® | Trenchstop™ 5 | - |
| Packaging | Tube | Tube | Tube | Tube |
