Product CatalogPart Number
AUIRGF66524D0-IR
Manufacturer
International RectifierDescription
IGBT
Datasheet
DatasheetPackage
TO-247-3
In Stock
30,842 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AUIRGF66524D0-IR
AUIRGF66524D0-IR
lmages are for reference only.Payment Methods
Delivery Services
IGBT 600 V 60 A 214 W Through Hole TO-247AC
Quick Inquiry
AUIRGF66524D0-IR
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 72 A |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 24A |
| Power - Max | 214 W |
| Switching Energy | 915µJ (on), 280µJ (off) |
| Input Type | Standard |
| Gate Charge | 80 nC |
| Td (on/off) @ 25°C | 30ns/75ns |
| Test Condition | 400V, 24A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Reverse Recovery Time (trr) | 176 ns |
| Base Product Number | AUIRGF66524 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

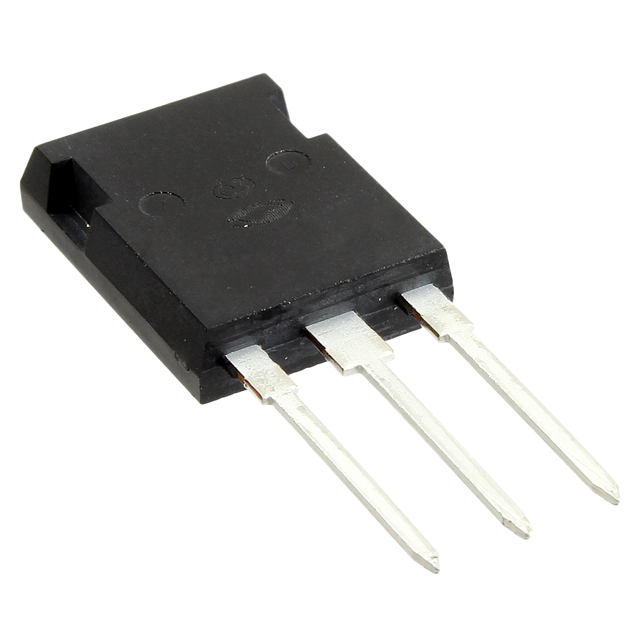

| Part Number | AUIRGF65A40D0 | AUIRGF65G40D0 | AUIRGF66524D0 | APT30GT60BRG |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DISCRETES | IGBT 600V 62A 625W TO247 | IGBT 600V 60A 214W TO-247AC | IGBT NPT 600V 64A TO247 |
| Series | CooliRIGBT™ | CooliRIGBT™ | - | Thunderbolt IGBT® |
| Packaging | Tube | Tube | Tube | Tube |
