AXA00C36-LHS
lmages are for reference only.AXA00C36-LHS
10W, 18 - 75VIN, SINGLE, 15V@0.6
Datasheet6-DIP Module
35,672 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 660mA 18V - 75V Input
AXA00C36-LHS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AXA (10W) |
| Packaging | Box |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 660mA |
| Power (Watts) | 9.9 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Heat Sink, Remote On/Off |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cUL, TUV, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
 |

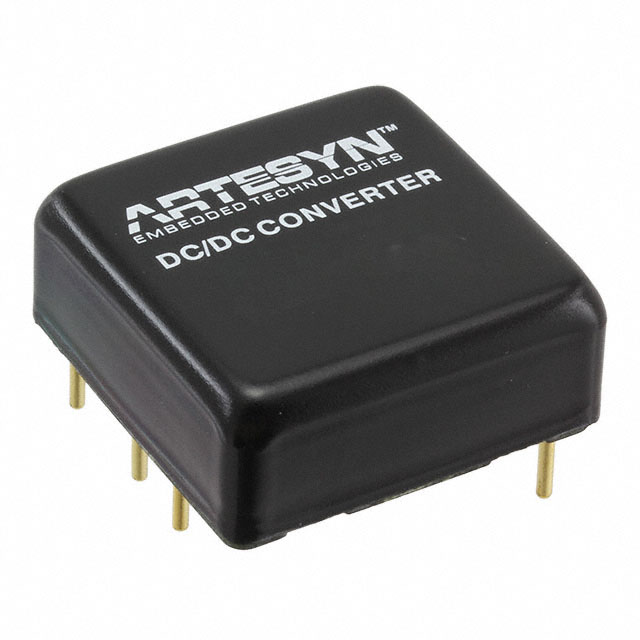

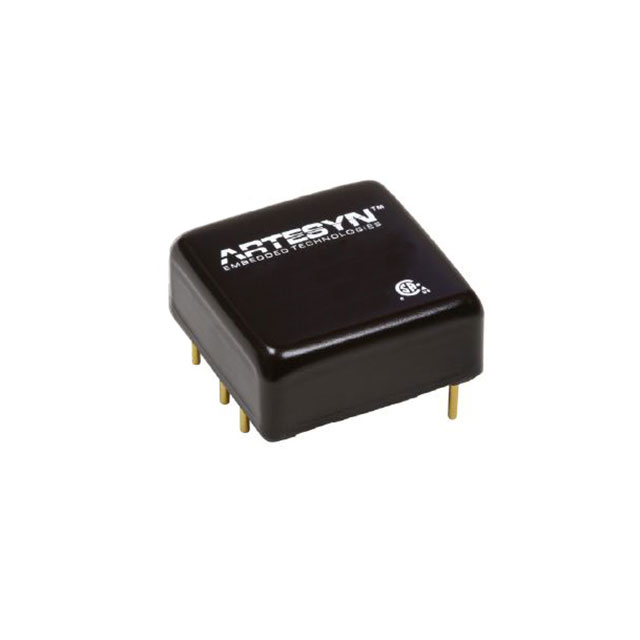

| Part Number | AXA00C36-L | AXA00C18-L | AXA00C18-LHS | AXA00CC18-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 15V 10W | DC DC CONVERTER 15V 10W | 10W, 9 - 36VIN, SINGLE, 15V@0.66 | DC DC CONVERTER +/-15V 20W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Box | Tube |
