AYA01C05-L

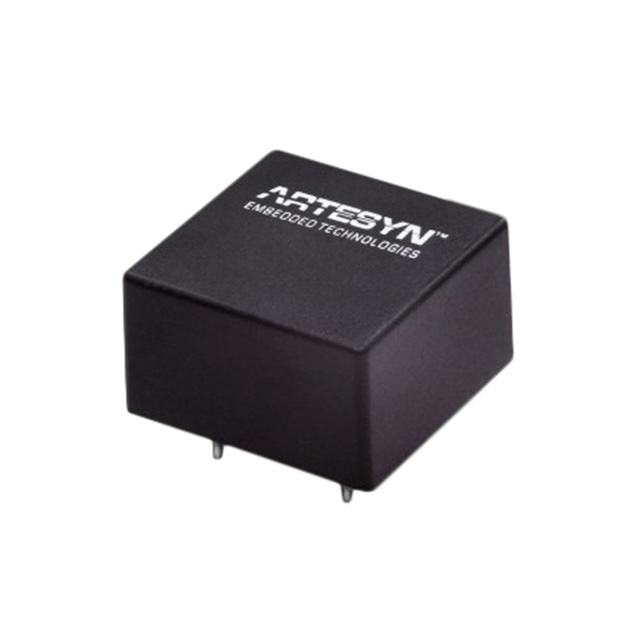

lmages are for reference only.AYA01C05-L
DC DC CONVERTER 15V 3W
Datasheet7-DIP Module, 4 Leads
33,302 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 200mA 4.5V - 10V Input
AYA01C05-L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | AYA (3W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 4 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | AYA01C |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | AYA00A05-L | AYA00A12-L | AYA00A24-L | AYA00A48-L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 2W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tube | Tube | Tube | Tube |
