B32560J8103M000

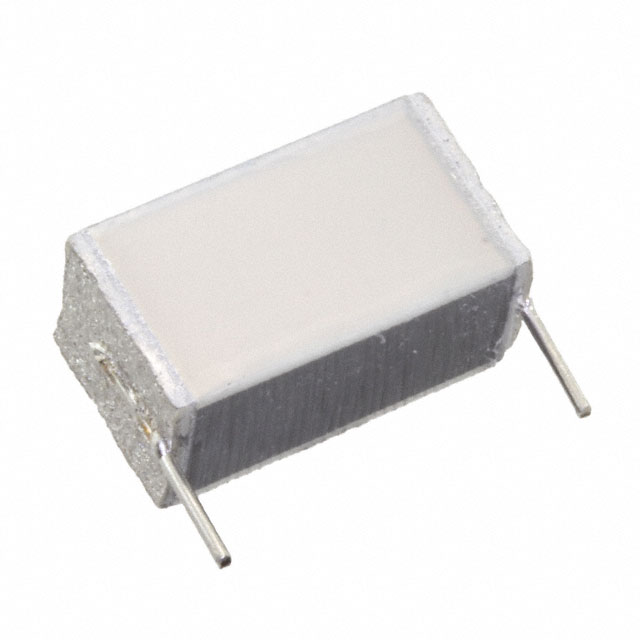

lmages are for reference only.B32560J8103M000
CAP FILM 10000PF 20% 630VDC 2DIP
Datasheet2-DIP
17,884 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 pF Film Capacitor 400V 630V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2-DIP
B32560J8103M000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3256* - MKT SilverCap™ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 pF |
| Tolerance | ±20% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 2-DIP |
| Size / Dimension | 0.354" L x 0.150" W (9.00mm x 3.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32560J8102J000 | B32560J8102K000 | B32560J8102K189 | B32560J8102K289 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1000PF 5% 630VDC 2DIP | CAP FILM 1000PF 10% 630VDC 2DIP | CAP FILM 1000PF 10% 630VDC 2DIP | CAP FILM 1000PF 10% 630VDC 2DIP |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
