B78108T1392K000
lmages are for reference only.B78108T1392K000
FIXED IND 3.9UH 400MA 550MOHM TH
DatasheetAxial
81,187 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.9 µH Unshielded Drum Core, Wirewound Inductor 400 mA 550mOhm Max Axial
B78108T1392K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | MCC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.9 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 550mOhm Max |
| Q @ Freq | 40 @ 7.96MHz |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |  | |  |

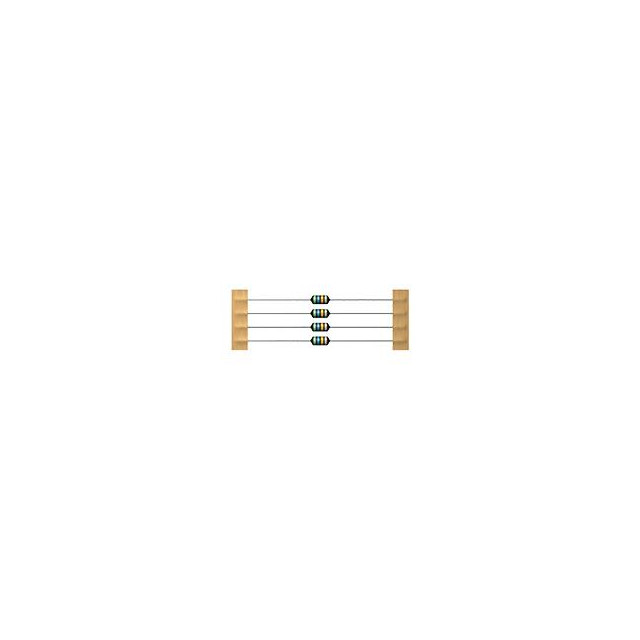

| Part Number | B78108T1332K000 | B78108T1333K000 | B78108T1393K000 | B78108E1101M000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 3.3UH 420MA 500MOHM TH | FIXED IND 33UH 150MA 4.1 OHM TH | FIXED IND 39UH 140MA 4.5 OHM TH | FIXED IND 100NH 7.3A 15 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
