BAW56S,135

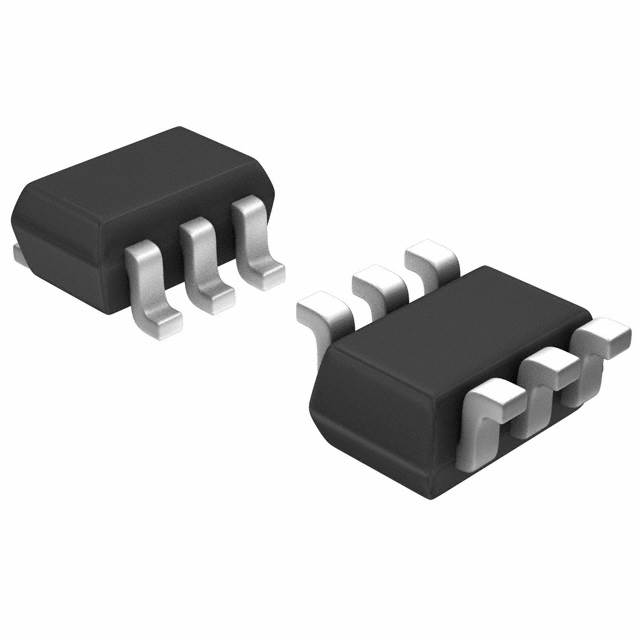

lmages are for reference only.BAW56S,135
DIODE ARRAY GP 90V 250MA 6-TSSOP
Datasheet6-TSSOP, SC-88, SOT-363
83,019 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 2 Pair Common Anode 90 V 250mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
BAW56S,135
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Pair Common Anode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-TSSOP |
| Base Product Number | BAW56 |
| Reverse Recovery Time (trr) | 4 ns |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | BAW56S,115 | BAW56 | BAW56 | BAW56 |
| Manufacturer | Nexperia USA Inc. | EVVO | onsemi | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ARRAY GP 90V 250MA 6-TSSOP | DIODE ARRAY GP 70V 200MA SOT23 | DIODE ARRAY GP 85V 200MA SOT23-3 | DIODE ARRAY GP 70V 200MA SOT23 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
