BH30RB1WGUT-E2
lmages are for reference only.BH30RB1WGUT-E2
IC REG LINEAR 3V 150MA 4VCSP60N1
Datasheet4-WFBGA, CSPBGA
27,598 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 4-VCSP60N1 (1x1.04)
BH30RB1WGUT-E2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 72 µA |
| PSRR | 63dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-WFBGA, CSPBGA |
| Supplier Device Package | 4-VCSP60N1 (1x1.04) |
| Base Product Number | BH30RB1 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

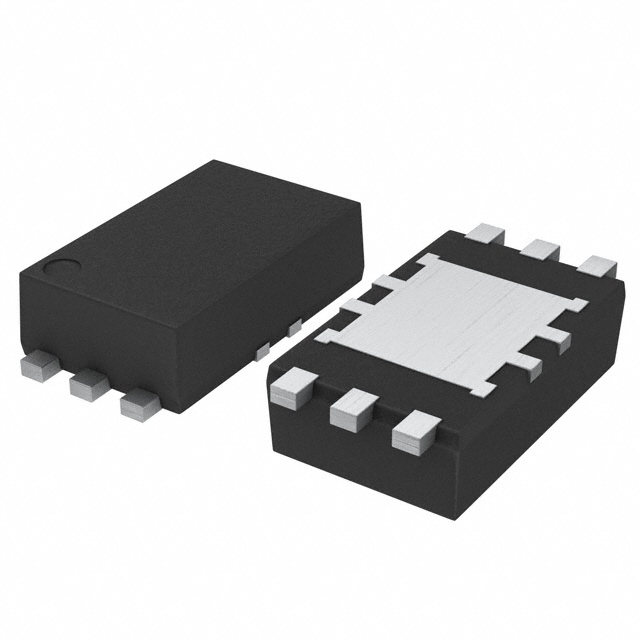

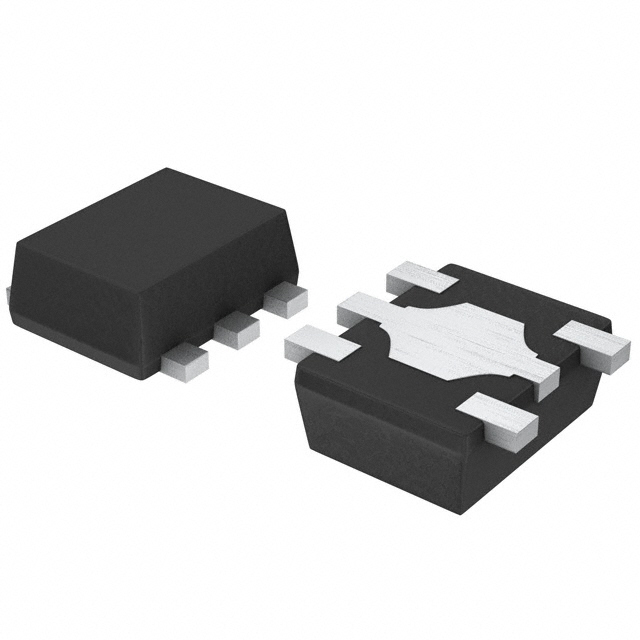

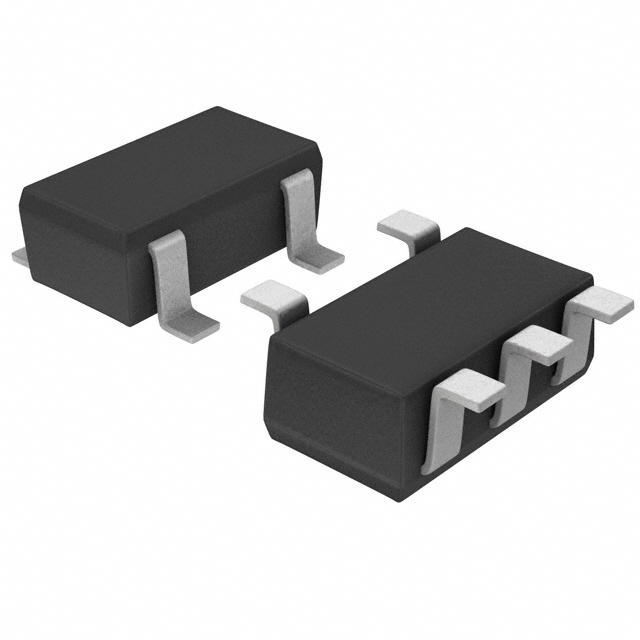

| Part Number | BH30FB1WG-TR | BH30FB1WHFV-TR | BH30M0AWHFV-TR | BH30MA3WHFV-TR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 3V 150MA 5SSOP | IC REG LINEAR 3V 150MA HVSOF5 | IC REG LINEAR 3V 300MA 6HVSOF | IC REG LINEAR 3V 300MA 6HVSOF |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
