BMR3201000/001
lmages are for reference only.BMR3201000/001
40-60V IN; 5-7.5V OUT; 60A: 400W
Datasheet18-SMD Module
32,422 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 7.5V 60A 40V - 60V Input
BMR3201000/001
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | BMR320 (400W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 5 ~ 7.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 60A |
| Power (Watts) | 450 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 97.6% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SMD Module |
| Size / Dimension | 1.06" L x 0.71" W x 0.24" H (27.0mm x 18.0mm x 6.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
|

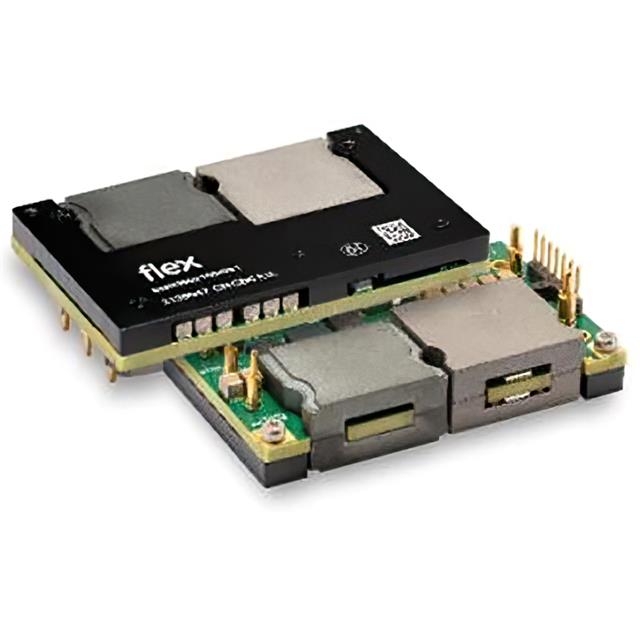

| Part Number | BMR3131011/001 | BMR3131011/001 | BMR3502102/002 | BMR3502102/002 |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10-15V DC/DC CONVERTER 1000W/300 | 10-15V DC/DC CONVERTER 1000W/300 | 40-60VIN; 12.2VOUT; 860W; NON-IS | 40-60VIN; 12.2VOUT; 860W; NON-IS |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tray |
