BMR3502102/002

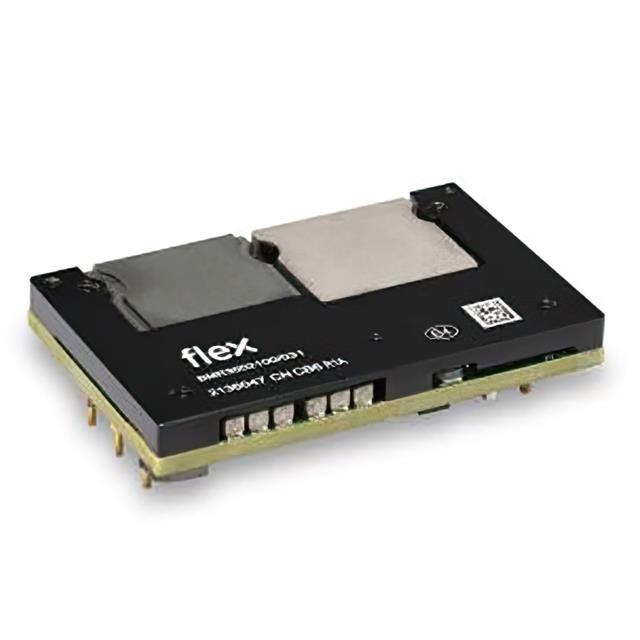

lmages are for reference only.BMR3502102/002
40-60VIN; 12.2VOUT; 860W; NON-IS
DatasheetQuarter Brick
33,474 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 12.2V 72A 40V - 60V Input
BMR3502102/002
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | BMR350 (860W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 12.2V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 72A |
| Power (Watts) | 878 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, I2C Interface, PMBus™, Remote On/Off, Standby Output |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 98.1% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.47" H (58.4mm x 36.8mm x 12.0mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | UL |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute | |
 |
|
 |
| Part Number | BMR3502102/002 | BMR3131011/001 | BMR3131011/001 | BMR3201000/001 |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40-60VIN; 12.2VOUT; 860W; NON-IS | 10-15V DC/DC CONVERTER 1000W/300 | 10-15V DC/DC CONVERTER 1000W/300 | 40-60V IN; 5-7.5V OUT; 60A: 400W |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
