Product CatalogPart Number
BSP100,135
Manufacturer
Nexperia USA Inc.Description
MOSFET N-CH 30V 3.2A SOT223
Datasheet
DatasheetPackage
TO-261-4, TO-261AA
In Stock
35,131 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BSP100,135
BSP100,135
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 30 V 3.2A (Ta) 8.3W (Tc) Surface Mount SOT-223
Quick Inquiry
BSP100,135
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 2.2A, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 250 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 8.3W (Tc) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | BSP100,135 | BSP110,115 | BSP122,115 | BSP123E6327T |
| Manufacturer | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |

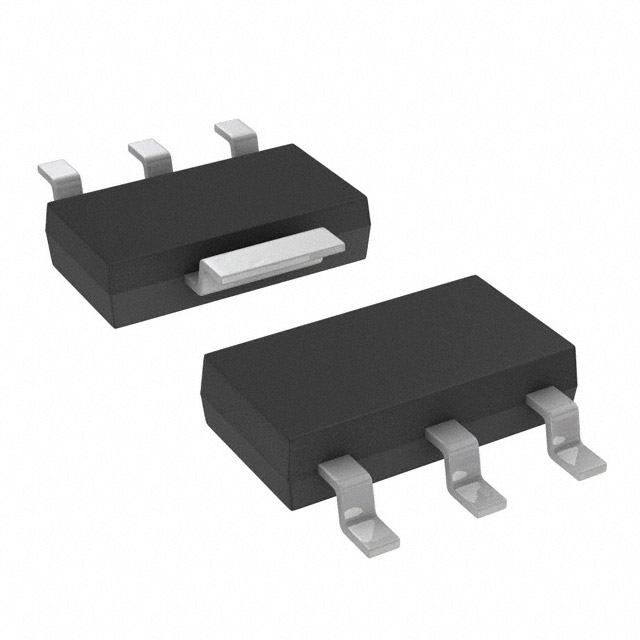

| Description | NEXPERIA BSP100 - 3.5A, 30V, 0.1 | MOSFET N-CH 100V 520MA SOT223 | MOSFET N-CH 200V 550MA SOT223 | MOSFET N-CH 100V 370MA SOT223-4 |
