Product CatalogPart Number
BSP122,115
Manufacturer
Nexperia USA Inc.Description
MOSFET N-CH 200V 550MA SOT223
Datasheet
DatasheetPackage
TO-261-4, TO-261AA
In Stock
69,771 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BSP122,115
BSP122,115
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 200 V 550mA (Ta) 1.5W (Ta) Surface Mount SOT-223
Quick Inquiry
BSP122,115
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 550mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.4V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 750mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | BSP122 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | BSP100,135 | BSP100,135 | BSP110,115 | BSP123E6327T |
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | MOSFET N-CH 30V 3.2A SOT223 | NEXPERIA BSP100 - 3.5A, 30V, 0.1 | MOSFET N-CH 100V 520MA SOT223 | MOSFET N-CH 100V 370MA SOT223-4 |
| Series | TrenchMOS™ | TrenchMOS™ | TrenchMOS™ | SIPMOS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
BSP123E6327T
Infineon Technologies

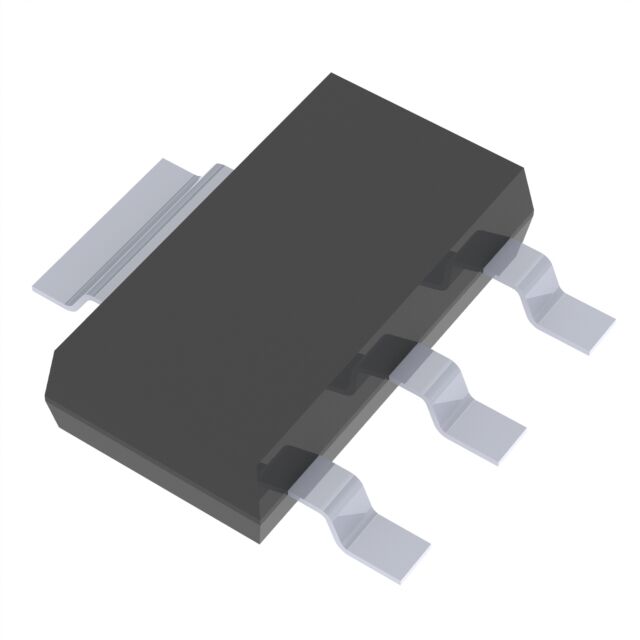

BSP123L6327HTSA1
Infineon Technologies
BSP125 E6327
Infineon Technologies
BSP125 E6433
Infineon Technologies
BSP125H6327XTSA1
Infineon Technologies
BSP125H6433XTMA1
Infineon Technologies
BSP125L6327HTSA1
Infineon Technologies
BSP125L6433HTMA1
Infineon Technologies
BSP126,115
Nexperia USA Inc.
BSP126,135
Nexperia USA Inc.
BSP129E6327
Infineon Technologies
BSP129E6327T
Infineon Technologies
BSP129H6327XTSA1
Infineon Technologies
BSP129H6906XTSA1
Infineon Technologies

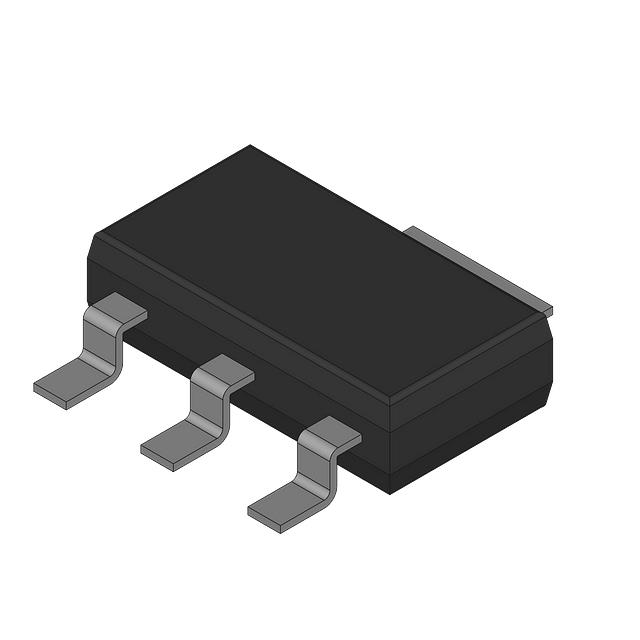

BSP129L6327
