C201368A-152NHF
lmages are for reference only.C201368A-152NHF
1.5mH, 30%, 12.0mOhm, 9.5A Max.
DatasheetVertical, 4 PC Pin
99,282 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 9.5A DCR 12mOhm
C201368A-152NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C201368A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1.5 mH @ 10 kHz |
| Current Rating (Max) | 9.5A |
| DC Resistance (DCR) (Max) | 12mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.201" L x 0.787" W (30.50mm x 20.00mm) |
| Height (Max) | 1.378" (35.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

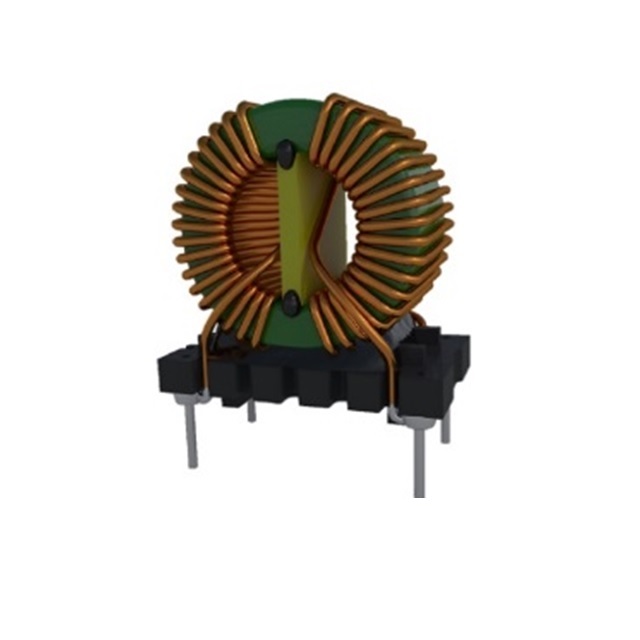

| Part Number | C201368A-102NHF | C201368A-222NHF | C201368A-332NHF | C201368A-502NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 1.0mH, 30%, 8.5mOhm, 11.0A Max. | 2.2mH, 30%, 18.0mOhm, 7.5A Max. | 3.3mH, 30%, 29.0mOhm, 6.0A Max. | 5.0mH, 30%, 54.0mOhm, 4.4A Max |
| Series | C201368A | C201368A | C201368A | C201368A |
| Packaging | Bulk | Bulk | Bulk | Bulk |
