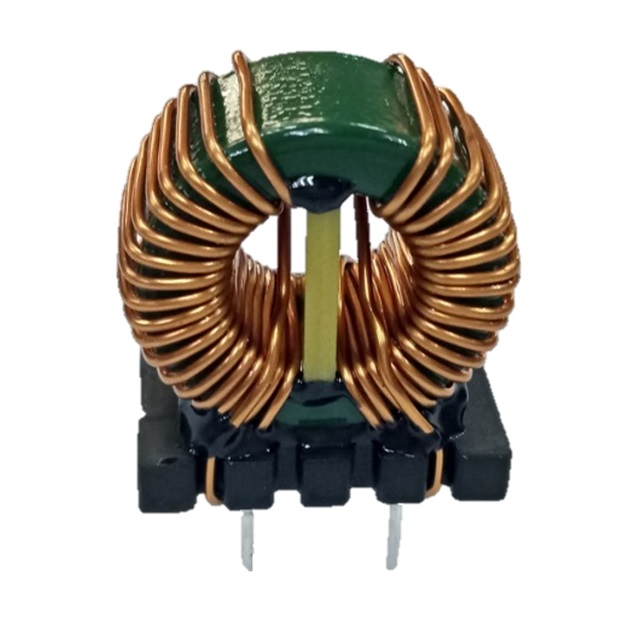

C201370A-102NHF
lmages are for reference only.C201370A-102NHF
1.0mH, 30%, 10.5mOhm, 8.2A Max.
DatasheetVertical, 4 PC Pin
30,311 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 8.2A DCR 10.5mOhm
C201370A-102NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C201370A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 1 mH @ 10 kHz |
| Current Rating (Max) | 8.2A |
| DC Resistance (DCR) (Max) | 10.5mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.083" L x 0.728" W (27.50mm x 18.50mm) |
| Height (Max) | 1.280" (32.50mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C201370A-152NHF | C201370A-222NHF | C201370A-332NHF | C201370A-502NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 1.5mH, 30%, 15.0mOhm, 6.8A Max. | 2.2mH, 30%, 20.0mOhm, 6.0A Max. | 3.3mH, 30%, 35.0mOhm, 4.5A Max. | 5.0mH, 30%, 63.5mOhm, 3.3A Max. |
| Series | C201370A | C201370A | C201370A | C201370A |
| Packaging | Bulk | Bulk | Bulk | Bulk |
