C20200-23
lmages are for reference only.C20200-23
600uH, 3.6mOhm 25Amp Max.
DatasheetRadial, Vertical - 4 Leads
95,417 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 25A DCR 3.6mOhm
C20200-23
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C20200 |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 600 µH @ 1 kHz |
| Current Rating (Max) | 25A |
| DC Resistance (DCR) (Max) | 3.6mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.850" L x 0.945" W (47.00mm x 24.00mm) |
| Height (Max) | 1.650" (41.91mm) |
| Package / Case | Radial, Vertical - 4 Leads |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

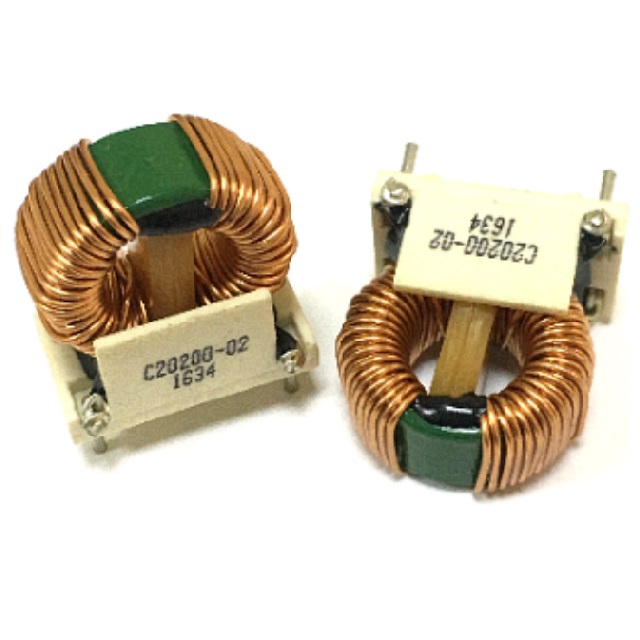

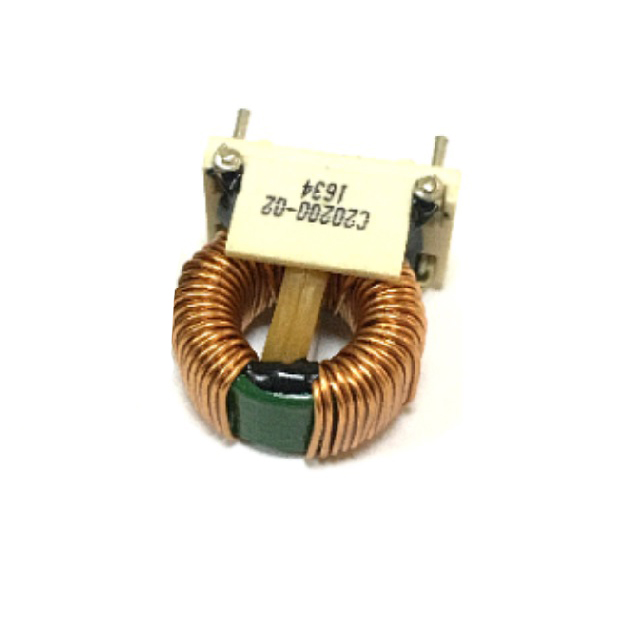

| Part Number | C20200-20 | C20200-21 | C20200-22 | C20200-24 |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 2,400uH, 8mOhm, 17Amp Max. | 1,000uH, 7mOhm, 20Amp Max. | 500uH, 5mOhm 14Amp Max. | 3.0mH, 13.0A Rated. |
| Series | C20200 | C20200 | C20200 | C20200 |
| Packaging | Tray | Tray | Tray | Tray |
