C301313A-202NHF
lmages are for reference only.C301313A-202NHF
2.0mH, 30mOhm, 5.6A Irms
DatasheetHorizontal, 4 PC Pin
88,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5.6A DCR 30mOhm
C301313A-202NHF
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C301313A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 2 mH @ 10 kHz |
| Current Rating (Max) | 5.6A |
| DC Resistance (DCR) (Max) | 30mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.083" L x 1.012" W (27.50mm x 25.70mm) |
| Height (Max) | 0.748" (19.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

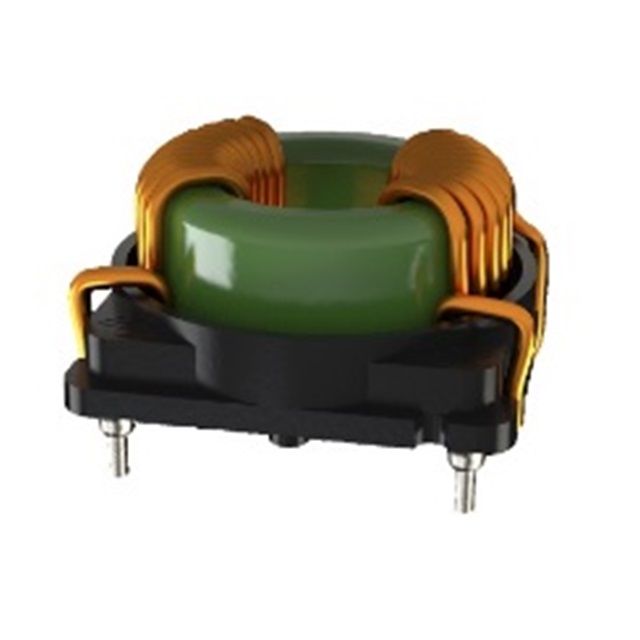

| Part Number | C301313A-102NHF | C301313A-103NHF | C301313A-203NHF | C301313A-302NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 1.0mH, 14mOhm, 8.2A Irms. | 10.0mH, 197.0mOhm, 2.2A Irms. | 20.0mH, 370mOhm, 1.6A Irms. | 3.0mH, 47.0mOhm, 4.5A Irms. |
| Series | C301313A | C301313A | C301313A | C301313A |
| Packaging | Bulk | Bulk | Bulk | Bulk |
