C301369A-532NU

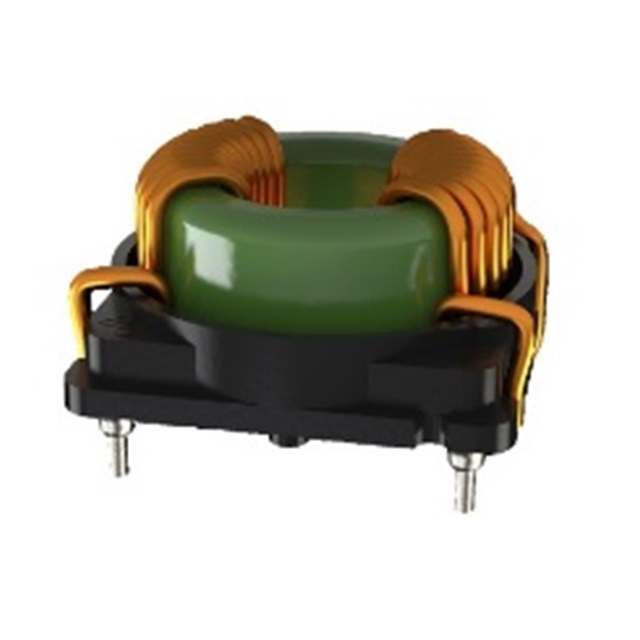

lmages are for reference only.C301369A-532NU
5.3mH, 30%, 27.0mOhm, 7.6A Max.
DatasheetHorizontal, 4 PC Pin
76,704 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 7.6A DCR 27mOhm
C301369A-532NU
| Category | Filters - Common Mode Chokes - |
| Manufacturer | ITG Electronics, Inc. |
| Series | C301369A |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 5.3 mH @ 1 kHz |
| Current Rating (Max) | 7.6A |
| DC Resistance (DCR) (Max) | 27mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
| Height (Max) | 1.024" (26.00mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C301369A-103NU | C301369A-752NU | C301306-172NHF | C301306-202NHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 10.0mH, 30%, 44.0mOhm, 6.0A Max | 7.5mH, 30%, 32.5mOhm, 7.0A Max. | 1.7mH, 30%, 6.5mOhm, 18A Rated | 2.0mH, 30%, 8.0mOhm, 16A Rated. |
| Series | C301369A | C301369A | C301306 | C301306 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
