C3M0060065J-TR
lmages are for reference only.C3M0060065J-TR

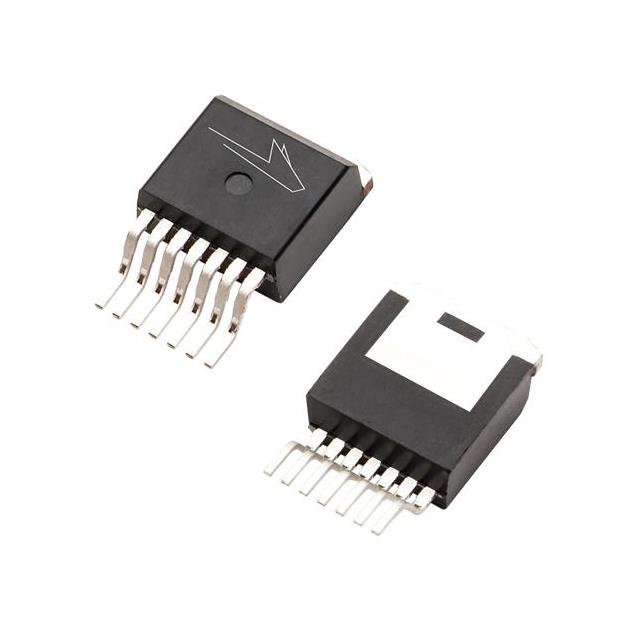

SIC, MOSFET, 60M, 650V, TO-263-7
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
40,575 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 36A (Tc) 136W (Tc) Surface Mount TO-263-7
C3M0060065J-TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | C3M™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 79mOhm @ 13.2A, 15V |
| Vgs(th) (Max) @ Id | 3.6V @ 5mA |
| Vgs (Max) | +15V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 1020 pF @ 600 V |
| FET Feature | - |
| Power Dissipation (Max) | 136W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | C3M0060065 |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | C3M0060065J | C3M0060065D | C3M0060065K | C3M0060065L-TR |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

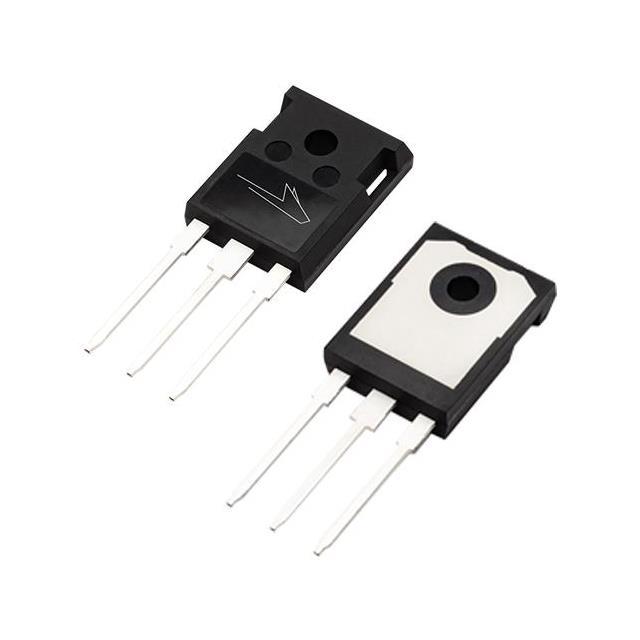

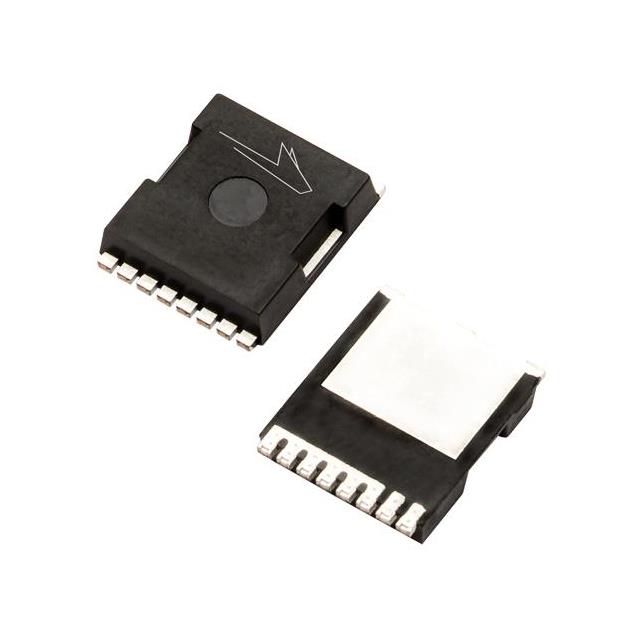

| Description | SICFET N-CH 650V 36A TO263-7 | SICFET N-CH 650V 37A TO247-3 | SICFET N-CH 650V 37A TO247-4L | SIC, MOSFET, 60M, 650V, TOLL, IN |
| Series | C3M™ | C3M™ | C3M™ | C3M™ |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
