CCMR.800T

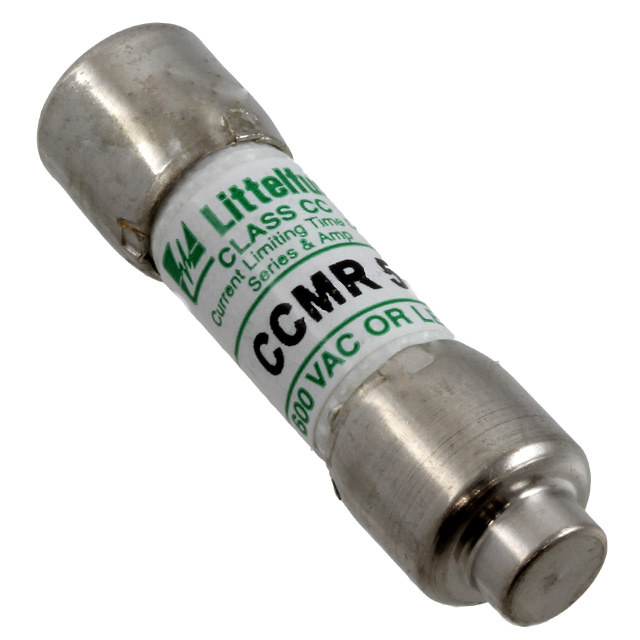

lmages are for reference only.CCMR.800T
FUSE CRTRDGE 800MA 600VAC/250VDC
Datasheet5AG, 10mm x 38mm (Midget)
93,997 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
800mA 600 VAC 250 VDC Fuse Cartridge Requires Holder
CCMR.800T
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-GARD®, POWR-PRO® CCMR |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 800mA |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Motor Protection |
| Features | - |
| Class | CC |
| Approval Agency | CE, CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 300kA AC, 20kA DC |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Size / Dimension | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | CCMR.200T | CCMR.250T | CCMR.300T | CCMR.500T |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CRTRDGE 200MA 600VAC/250VDC | FUSE CRTRDGE 250MA 600VAC/250VDC | FUSE CRTRDGE 300MA 600VAC/250VDC | FUSE CRTRDGE 500MA 600VAC/250VDC |
| Series | POWR-GARD®, POWR-PRO® CCMR | POWR-GARD®, POWR-PRO® CCMR | POWR-GARD®, POWR-PRO® CCMR | POWR-GARD®, POWR-PRO® CCMR |
| Packaging | Bulk | Bulk | Bulk | Bulk |
