CED0J102MCB08A5F2
lmages are for reference only.CED0J102MCB08A5F2
CAP ALUM 1000UF 20% 6.3V SMD
DatasheetRadial, Can - SMD
93,580 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
CED0J102MCB08A5F2
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | CED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Impedance | 170 mOhms |
| Product Attribute |  |
 |
 |
 |

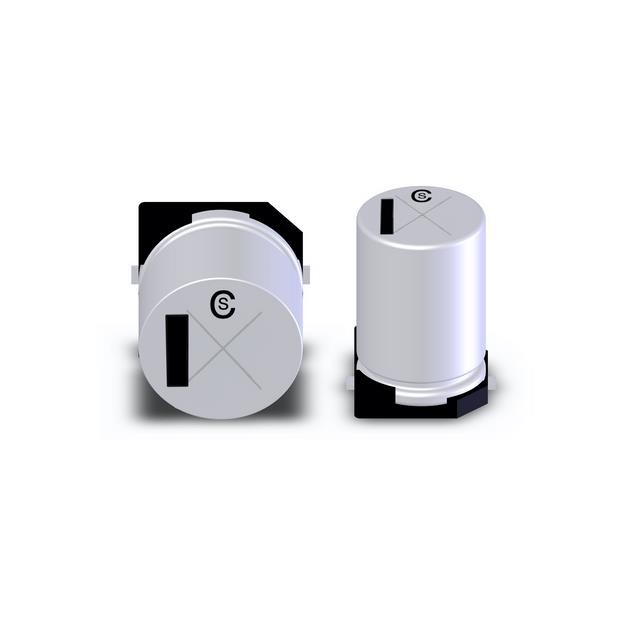

| Part Number | CED0J221MCB6358 | CED1A102MCB10A5 | CED1A151MCB6358 | CED1A221MCB6377 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 6.3V SMD | CAP ALUM 1000UF 20% 10V SMD | CAP ALUM 150UF 20% 10V SMD | CAP ALUM 220UF 20% 10V SMD |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
