CM20TF-24H
Manufacturer
Powerex Inc.Description
IGBT MOD 1200V 20A 250W
Datasheet
DatasheetPackage
Module
In Stock
39,742 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CM20TF-24H
CM20TF-24H
lmages are for reference only.Payment Methods
Delivery Services
IGBT Module Three Phase Inverter 1200 V 20 A 250 W Chassis Mount Module
Quick Inquiry
CM20TF-24H
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Powerex Inc. |
| Series | IGBTMOD™ |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| IGBT Type | - |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 20 A |
| Power - Max | 250 W |
| Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 20A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 4 nF @ 10 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
|
|

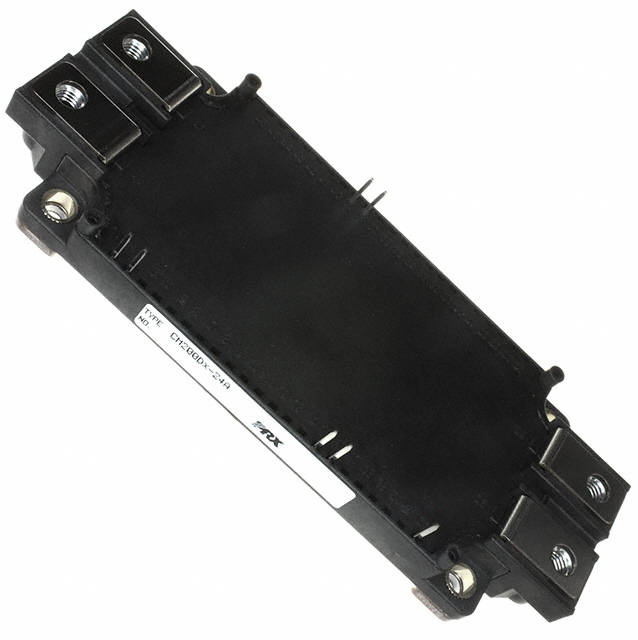

| Part Number | CM200DX-24A | CM200RL-12NF | CM20TF-12H | FF450R33T3E3B5P3BPMA1 |
