CML0306-6N8-HNH

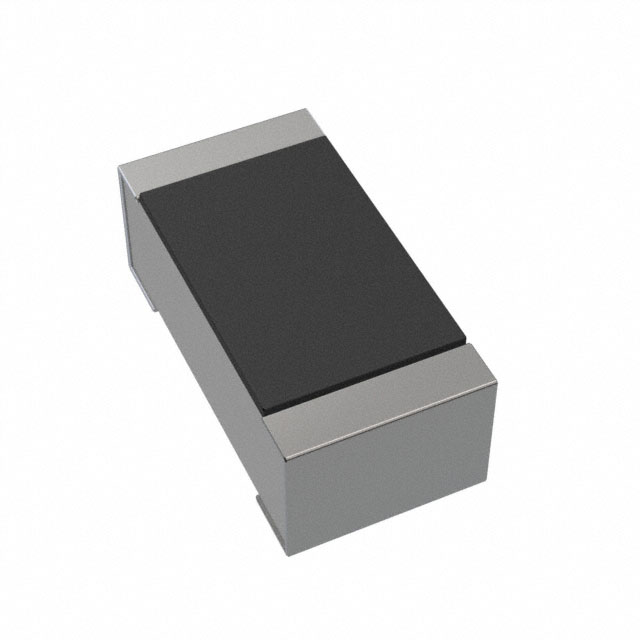

lmages are for reference only.CML0306-6N8-HNH
FIXED IND 6.8NH 230MA 700MOHM SM
Datasheet0201 (0603 Metric)
55,054 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 nH Shielded Thin Film Inductor 230 mA 700mOhm Max 0201 (0603 Metric)
CML0306-6N8-HNH
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | CML0306 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 6.8 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 230 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 4 @ 100MHz |
| Frequency - Self Resonant | 5.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.61mm x 0.31mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | CML0306-6N8-HNH | CML0306-6N8-JNH | CML0306-0N6-BNH | CML0306-0N8-BNH |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FIXED IND 6.8NH 230MA 700MOHM SM | FIXED IND 6.8NH 230MA 700MOHM SM | FIXED IND 0.6NH 900MA 100MOHM SM | FIXED IND 0.8NH 850MA 100MOHM SM |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
