CPC1317PTR
lmages are for reference only.CPC1317PTR
SSR RELAY SPST-NO 150MA 0-70V
Datasheet8-SMD (0.300", 7.62mm)
42,914 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 8-SMD (0.300", 7.62mm)
CPC1317PTR
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | IXYS Integrated Circuits Division |
| Series | CPC, OptoMOS® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 70 V |
| Load Current | 150 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SMD (0.300", 7.62mm) |
| Supplier Device Package | 8-Flatpack |
| Approval Agency | CSA, TUV, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | CPC131 |
| On-State Resistance (Max) | 16 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | CPC1317P | CPC1002N | CPC1002NTR | CPC1004N |
| Manufacturer | IXYS Integrated Circuits Division | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

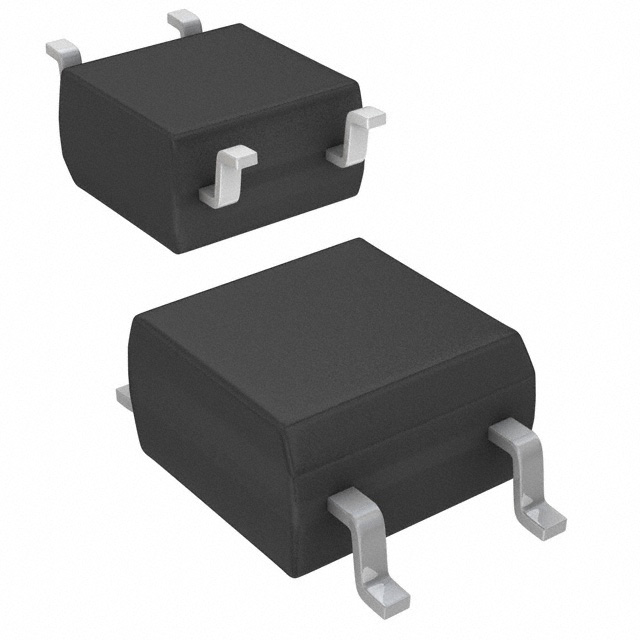

| Description | SSR RELAY SPST-NO 150MA 0-70V | SSR RELAY SPST-NO 700MA 0-60V | SSR RELAY SPST-NO 700MA 0-60V | SSR RELAY SPST-NO 300MA 0-100V |
| Series | CPC, OptoMOS® | CPC, OptoMOS® | CPC, OptoMOS® | CPC, OptoMOS® |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
